Запчасти Case IH FARMALL 110CL (35.100.060) - VAR - 759021 - DELIVERY PIPE, LIFT ARM, STEERING, W/O TRAILER BRAKE VALVE, CAB (35) - HYDRAULIC SYSTEMS

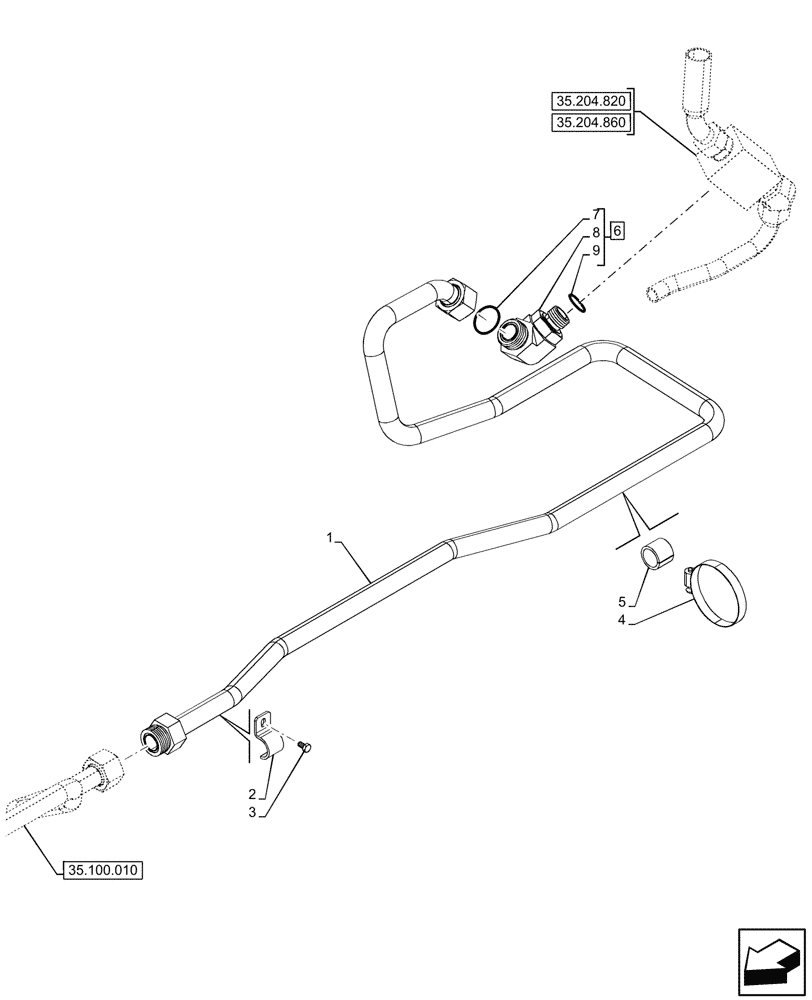

Схема запчастей Case IH FARMALL 110CL - (35.100.060) - VAR - 759021 - DELIVERY PIPE, LIFT ARM, STEERING, W/O TRAILER BRAKE VALVE, CAB (35) - HYDRAULIC SYSTEMS
35.204.860
8
7
6
3
4
9
5
1
2
35.204.820
35.100.010

Артикул

Название

Примечание

Количество

1

47954752

PIPE

Delivery to T-Connector

1шт.

2

84585106

CLAMP,R12.5mm x 25mm W

1шт.

3

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

1шт.

4

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

1шт.

5

47577535

SPACER,25mm ID x 32mm OD x 25mm L

2шт.

6

87010650

ELBOW,90 Degree, 1 7/16"-12 ORFS x M27 x 2 ORB

ASSY, Incl 7 - 9

1шт.

7

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 6

1шт.

9

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

Выбрано товаров: 9
