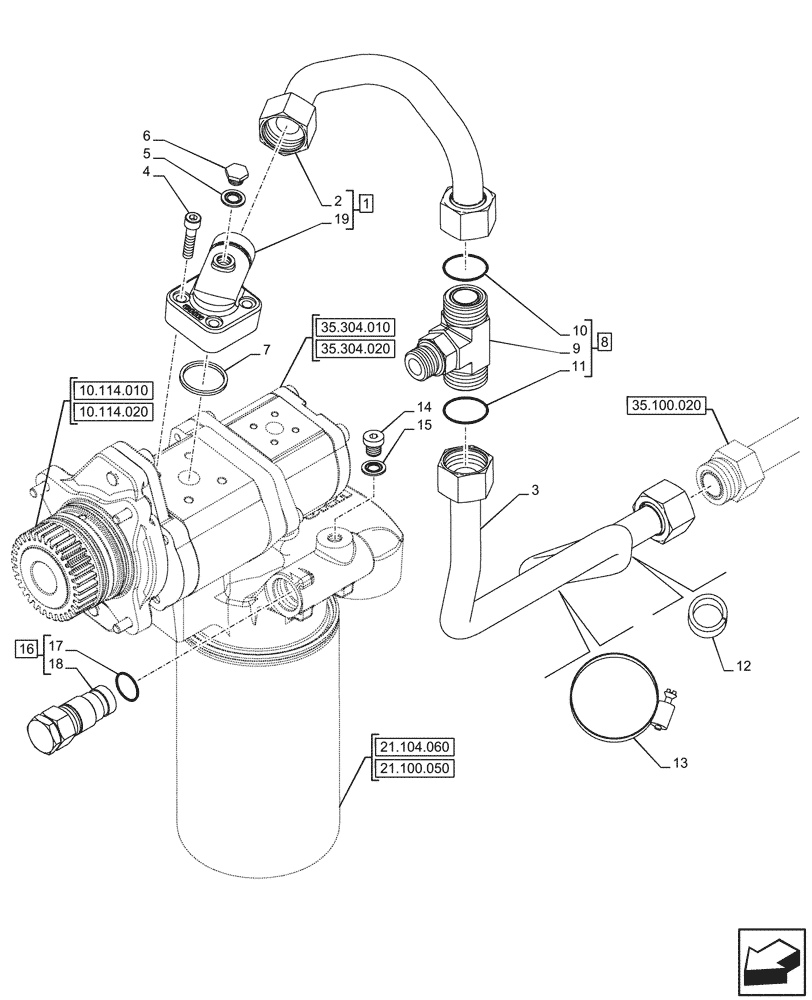

Запчасти Case IH FARMALL 110CL (35.100.010) - VAR - 759011 - DELIVERY PIPE, LIFT ARM, STEERING, 80L/MIN, CAB (35) - HYDRAULIC SYSTEMS

1

47923261

PIPE

ASSY, Incl 2, 19

1шт.

2

47573911

PIPE

from Pump to Oil Filter T Connector

1шт.

3

47573977

PIPE

from Oil Filter T Connector to Remote Control Valve Line

1шт.

4

14306621

HEX SOC SCREW,M8 x 35mm, Cl 8.8, Full Thd

3шт.

5

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

6

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

7

47505593

SEAL,Square, 2.62mm Thk x 34.59mm ID, 90 Duro

1шт.

8

84568335

HYD CONNECTOR,M27 x 2 x 84mm L

ASSY, Incl 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

1шт.

10

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

12

47577535

SPACER,25mm ID x 32mm OD x 25mm L

25mm ID x 32mm OD x 25mm L

1шт.

13

87040758

HOSE CLAMP,71.4mm - 95.2mm

1шт.

14

970659

PLUG,Hex, M12 x 1.5 x 17.3mm L

Hex, M12 x 1.5

1шт.

15

82019391

SEAL,9.8mm ID x 14.4mm OD x 1mm Thk

ED Seal (Eolastic Soft Seal) DIN 3869 1.0x14.4x9.8

1шт.

16

47128782

VALVE PRESSURE RELIE

ASSY, Incl 17, 18

1шт.

17

14453981

O-RING,0.989" ID x 0.07" Width

1шт.

18

NSS

NOT SOLD SEPARAT

Valve, Incl in 16

1шт.

19

47505499

HYD CONNECTOR,M22 x 1.5/M27 x 3 x 54mm L

1шт.
