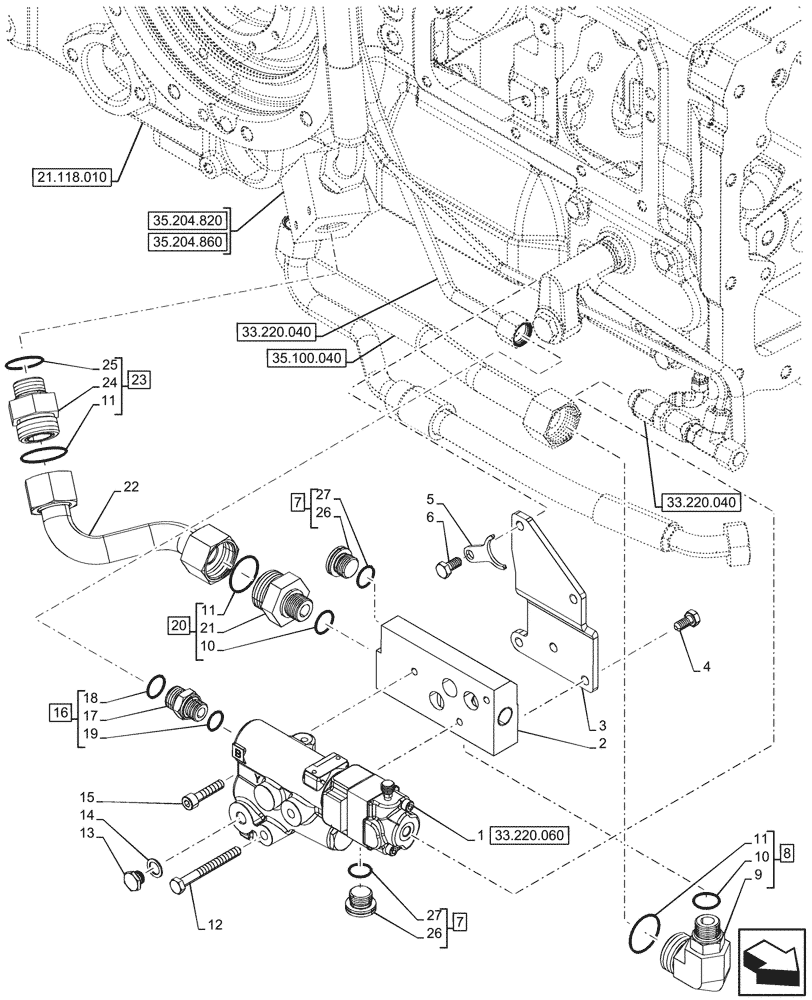

Запчасти Case IH FARMALL 110CL (33.220.050) - VAR - 743516, 743517 - TRAILER BRAKE VALVE, EDC, CAB (33) - BRAKES & CONTROLS

1

87516380

BRAKE VALVE

ASSY

1шт.

2

47803998

CONNECTING BLOCK

1шт.

3

47750940

BRACKET

1шт.

4

16043331

SCREW,Hex, M8 x 1.25 x 18mm, Cl 10.9, Full Thd

3шт.

5

47587762

BRACKET

1шт.

6

16043311

BOLT,Hex, M8 x 18, 5.8, Full Thd

2шт.

7

87635859

PLUG,M20 x 1.5

ASSY, Incl 26, 27

2шт.

8

47803755

ELBOW,Hex, M22 x 1.5 x 53.5mm

ASSY, Incl 9, 10 (Qty 1), 11 (Qty 1)

1шт.

9

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

1шт.

10

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

11

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

3шт.

12

16044721

SCREW,Hex, M8 x 75mm, Cl 8.8

2шт.

13

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

14

10296160

SEALING WASHER,M12.2 x 18 x 1, Copper

1шт.

15

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

16

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

ASSY, Incl 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

Connector, Incl in 16

1шт.

18

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

19

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

20

86639050

HYD CONNECTOR,1-7/16" - 12 ORFS x M22 x 1.5 ORB

ASSY, Incl 10 (Qty 1), 11 (Qty 1), 21

1шт.

21

NSS

NOT SOLD SEPARAT

Connector, Incl in 20

1шт.

22

47680012

PIPE,25mm OD

Delivery TBV, 25mm OD

1шт.

23

86639051

HYD CONNECTOR,1-7/16" - 12 ORFS x M27 x 2 ORB

ASSY, Incl 11 (Qty 1), 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

Connector, Incl in 23

1шт.

25

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

26

NSS

NOT SOLD SEPARAT

Plug, Incl in 7

1шт.

27

84432615

O-RING

1шт.
