Запчасти Case IH FARMALL 110CL (33.202.120) - VAR - 743524, 759011 - BRAKE FLUID, LINES, LEFT SIDE (33) - BRAKES & CONTROLS

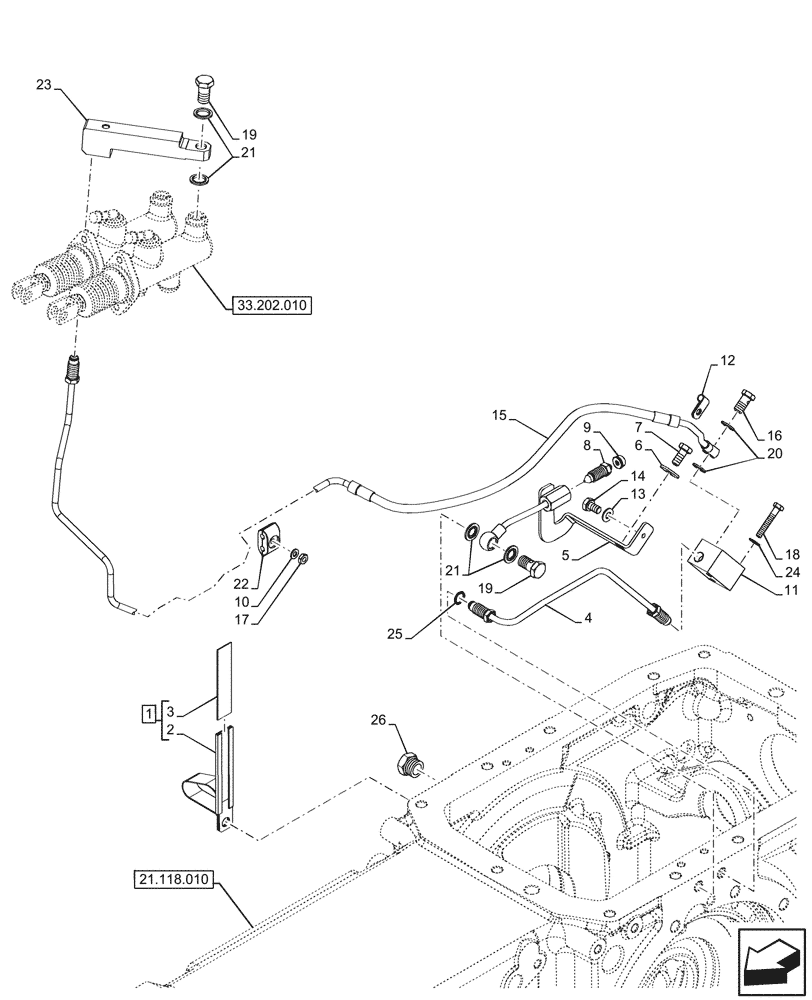

Схема запчастей Case IH FARMALL 110CL - (33.202.120) - VAR - 743524, 759011 - BRAKE FLUID, LINES, LEFT SIDE (33) - BRAKES & CONTROLS
15
1
13
19
18
9
16
5
4
17
7
21
21
10
12
19
22
2
20
8
3
25
11
23
24
26
14
21.118.010
33.202.010
6

Артикул

Название

Примечание

Количество

1

5182023

COLLAR

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Clip, Incl in 1

1шт.

3

5108793

FLEXIBLE SHEATH,105mm L

1шт.

4

47769932

PIPE

from Rear LH Block Connctor to Rear Transmission Housing

1шт.

5

47916993

PIPE

from Rear Transmission Housing to Lh Drain

1шт.

6

11194874

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.6mm Thk

1шт.

7

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

8

5155682

BLEED SCREW,Bleeder, M12 x 1.25 x 33mm

1шт.

9

5171793

BOOT

1шт.

10

12638101

WASHER,5.2mm ID x 14mm OD x 1mm Thk

2шт.

11

84415267

BLOCK

1шт.

12

80272535

WIRE CLAMP,6.3mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

13

11188674

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1mm Thk

1шт.

14

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

1шт.

15

48020863

PIPE

from LH Brake Cylinder to Rear LH Block Connector

1шт.

16

11904111

BANJO BOLT,M10 x 1 x 19mm

1шт.

17

14084111

LOCK NUT,M5 x .8, Flg

2шт.

18

9815707

BOLT,Hex, M6 x 37mm, Cl 8.8

2шт.

19

5155703

BANJO BOLT,M12 x 1.25 x 22mm

2шт.

20

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

2шт.

21

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

4шт.

22

87738904

CLAMP BRACKET

2шт.

23

47831252

HYD CONNECTOR,M8/12 x 1.25 x 138mm L

1шт.

24

13550201

WASHER,6.15mm ID x 13mm OD x 1mm Thk

2шт.

25

70933922

O-RING,0.07" Thk x 0.301" ID, -11, Cl 8, 90 Duro

1шт.

26

48022043

PLUG

1шт.

Выбрано товаров: 26
