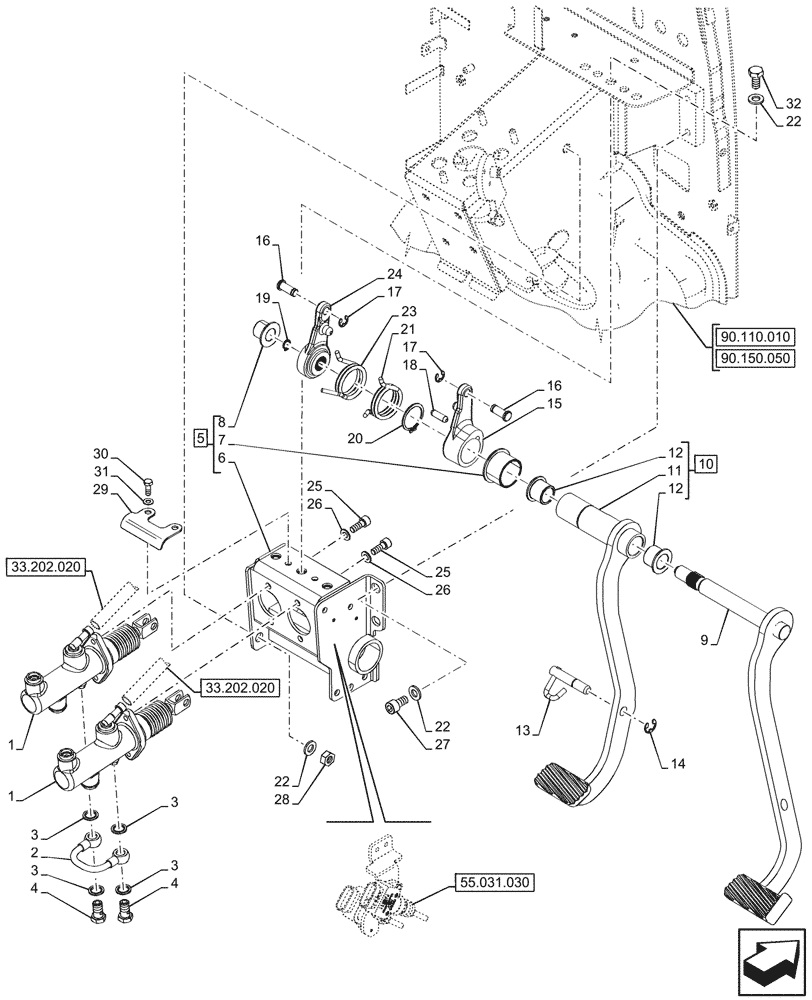

Запчасти Case IH FARMALL 110CL (33.202.010) - VAR - 759028, 759029, 759031, 759033 - BRAKE CYLINDER, PEDAL (33) - BRAKES & CONTROLS

1

87354670

MASTER CYLINDER

Brake

2шт.

2

5155701

TUBE

Brake Master Cylinder, Pressure

1шт.

3

10298460

SEALING WASHER,M12.2 x 18 x 1.5

4шт.

4

5155703

BANJO BOLT,M12 x 1.25 x 22mm

2шт.

5

48097774

ASSY, Incl 6 - 8

SUPPORT

1шт.

6

NSS

NOT SOLD SEPARAT

Support, Incl in 5

1шт.

7

48001267

BUSHING,35mm ID x 39mm OD x 26mm L

1шт.

8

48001250

BUSHING,16mm ID x 18mm OD x 17mm L

1шт.

9

47923750

PEDAL

Black

1шт.

10

48097778

ASSY, Incl 11, 12

PEDAL

1шт.

11

NSS

NOT SOLD SEPARAT

Pedal, Incl in 10

1шт.

12

48093071

BUSHING,21mm ID x 34mm OD x 22mm L

2шт.

13

5168890

PIN,12mm OD x 66mm L

Lock Brake Pedal

1шт.

14

11088174

CIRCLIP,M10

1шт.

15

48001412

LEVER

LH

1шт.

16

5155381

PIN,9.85mm OD x 28mm L

2шт.

17

16160974

CIRCLIP,M9

2шт.

18

5172858

ROLL PIN,8mm OD x 27mm L

8mm D x 27mm L

1шт.

19

11065874

CIRCLIP,M11

1шт.

20

11068276

SNAP RING,M34, Ext

1шт.

21

87564239

SPRING,47.6mm OD x 23.7mm L

1шт.

22

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

6шт.

23

87564238

SPRING,47.6mm OD x 23.7mm L

1шт.

24

87564646

LEVER

RH

1шт.

25

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

26

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

27

14360024

BOLT,M10 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

28

100016

NUT,M10 x 1.5, Cl 8

1шт.

29

47912278

BRACKET

Black

1шт.

30

10902324

BOLT,Hex, M6 x 18mm, Cl 8.8, Full Thd

2шт.

31

13550201

WASHER,6.15mm ID x 13mm OD x 1mm Thk

2шт.

32

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.
