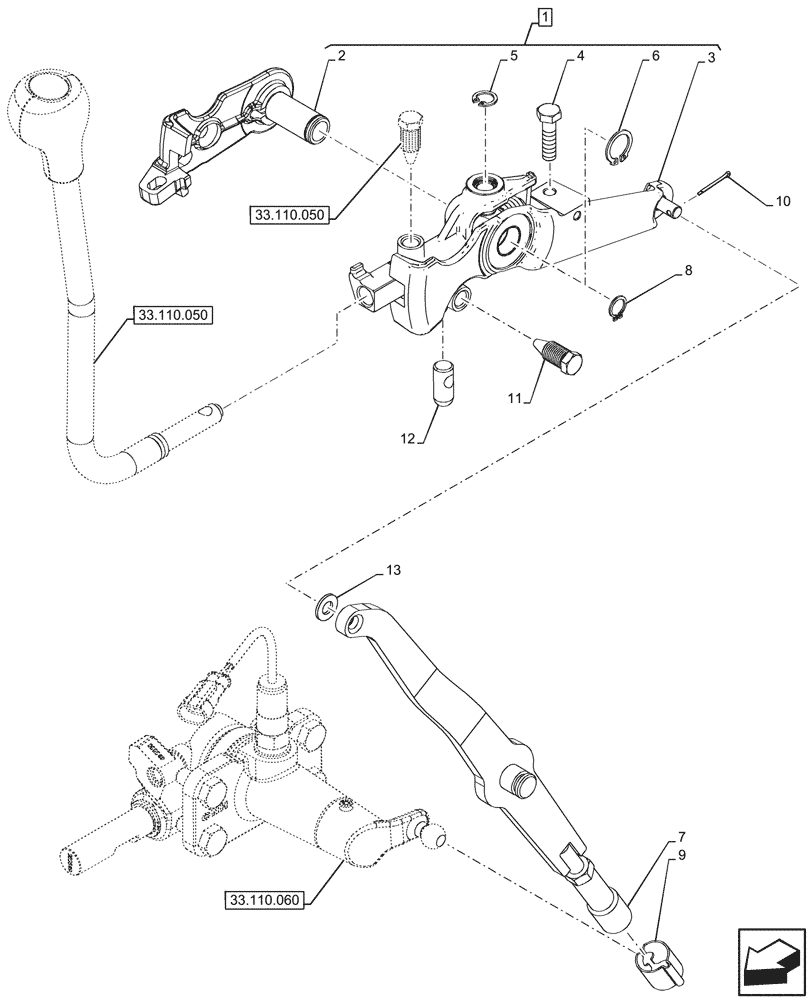

Запчасти Case IH FARMALL 110CL (33.110.040) - VAR - 743968 - CREEPER, PARKING LOCK, HI-LO (33) - BRAKES & CONTROLS

1

84481821

SELECTOR

ASSY, Incl 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Selector Park Lock, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Lock stop, Incl in 1

1шт.

4

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

5

11057276

SNAP RING,M14, Int

1шт.

6

11066676

SNAP RING,M18, Ext

1шт.

7

84518802

LEVER

1шт.

8

11066076

SNAP RING,M12, Ext

1шт.

9

10125674

CLAMP,15mm

1шт.

10

10796404

COTTER PIN,M3.2 x 18

1шт.

11

44013453

SCREW,Hex, M12 x 1.25 x 33mm

1шт.

12

84482125

DOWEL,12mm OD x 59mm L

1шт.

13

14496524

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.
