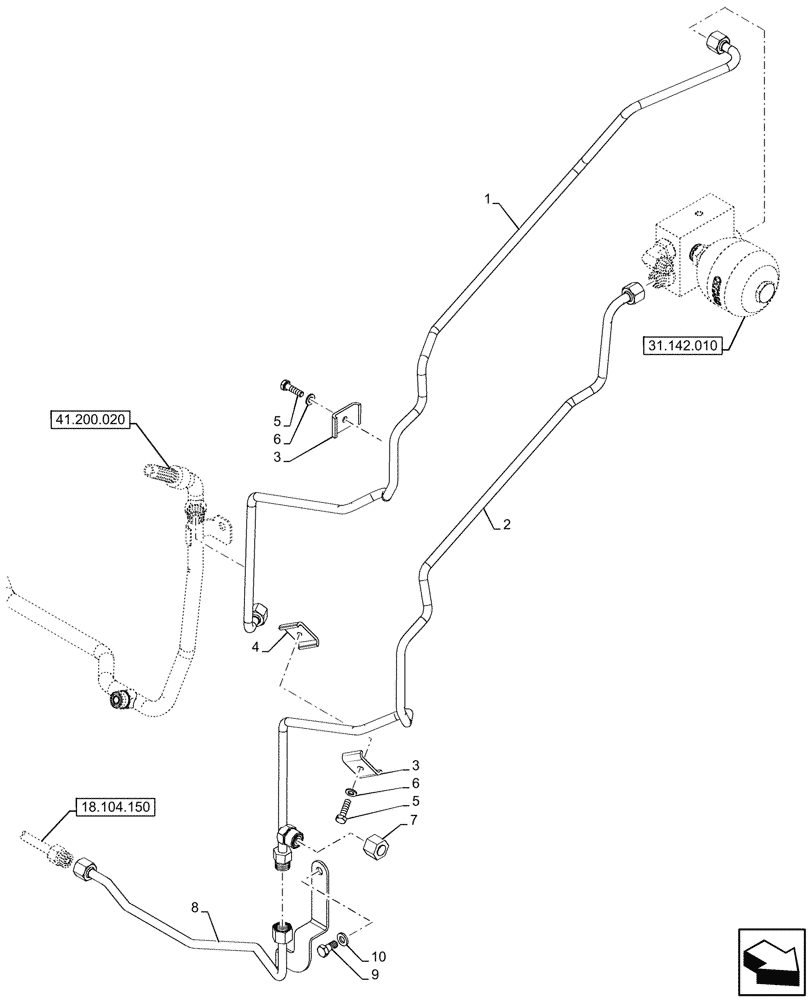

Запчасти Case IH FARMALL 110CL (31.142.030) - VAR - 743522 - CONTROL VALVE, LINES, CLUTCH, FRONT PTO (31) - IMPLEMENT POWER TAKE OFF

1

47988044

PIPE

Delivery to PTO Valve Block

1шт.

2

47987742

PIPE

Return from PTO Valve Block

1шт.

3

5193550

CLAMP,6.5mm ID

2шт.

4

5193549

CLAMP,6mm ID x 25mm Thk x 32mm L

Front

1шт.

5

10902524

SCREW,Hex, M6 x 22mm, Cl 8.8

2шт.

6

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

3шт.

7

9625546

CAP,11/16" - 16 ORFS

1шт.

8

48099148

Return from PTO Valve Block

PIPE

1шт.

9

11197874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 2.2mm Thk

1шт.

10

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

1шт.
