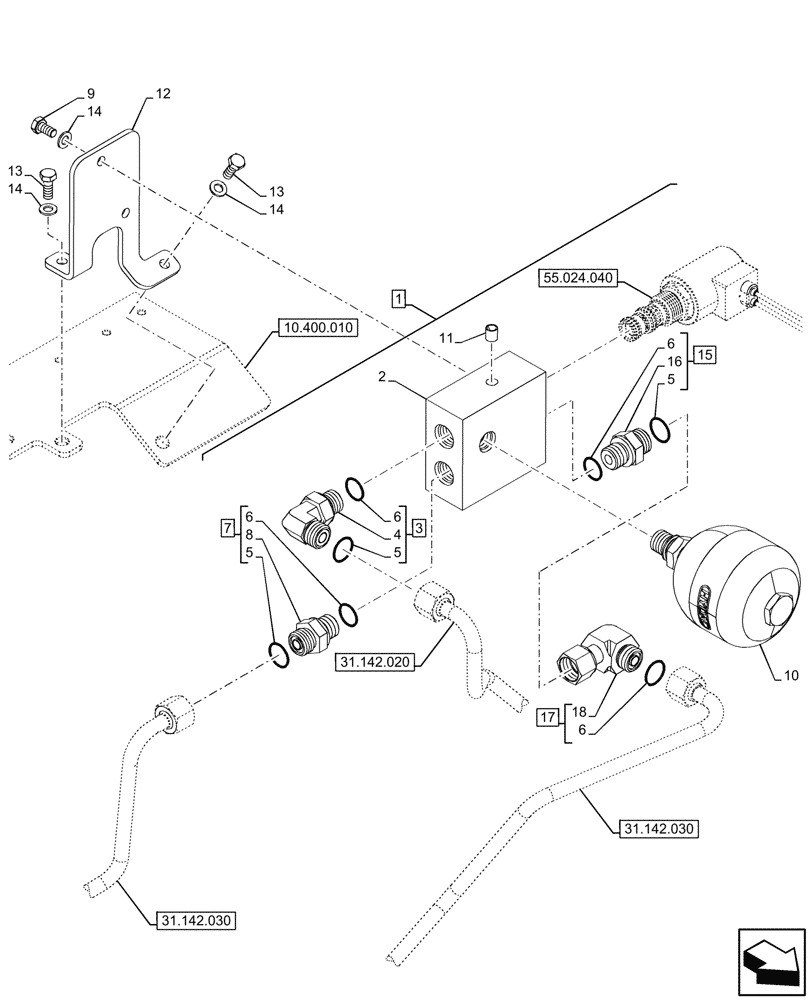

Запчасти Case IH FARMALL 110CL (31.142.010) - VAR - 743522 - CONTROL VALVE, FRONT PTO (31) - IMPLEMENT POWER TAKE OFF

1

47976494

PIPE

ASSY, Incl 2 - 8, 11, 15 - 18

1шт.

See also Pipe Components in Figure 55.024.040

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

ASSY, Incl 4, 5 (Qty 1), 6 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

Elbow 90°, Incl in 3

1шт.

5

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

3шт.

6

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

7

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 5 (Qty 1), 6 (Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Elbow 90°, Incl in 7

1шт.

9

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

10

47455512

ACCUMULATOR,0.16L

1шт.

11

14536490

PLUG,8.00mm Dia x 15.70mm L

2шт.

12

47675968

BRACKET

1шт.

13

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

14

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

3шт.

15

47913666

HYD CONNECTOR,6.5mm ID

ASSY, Incl 5 (Qty 1), 6 (Qty 1), 16

1шт.

16

NSS

NOT SOLD SEPARAT

Connector, Incl in 15

1шт.

17

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

ASSY, Incl 6 (Qty 1), 18

1шт.

18

NSS

NOT SOLD SEPARAT

Elbow 90°, Incl in 17

1шт.
