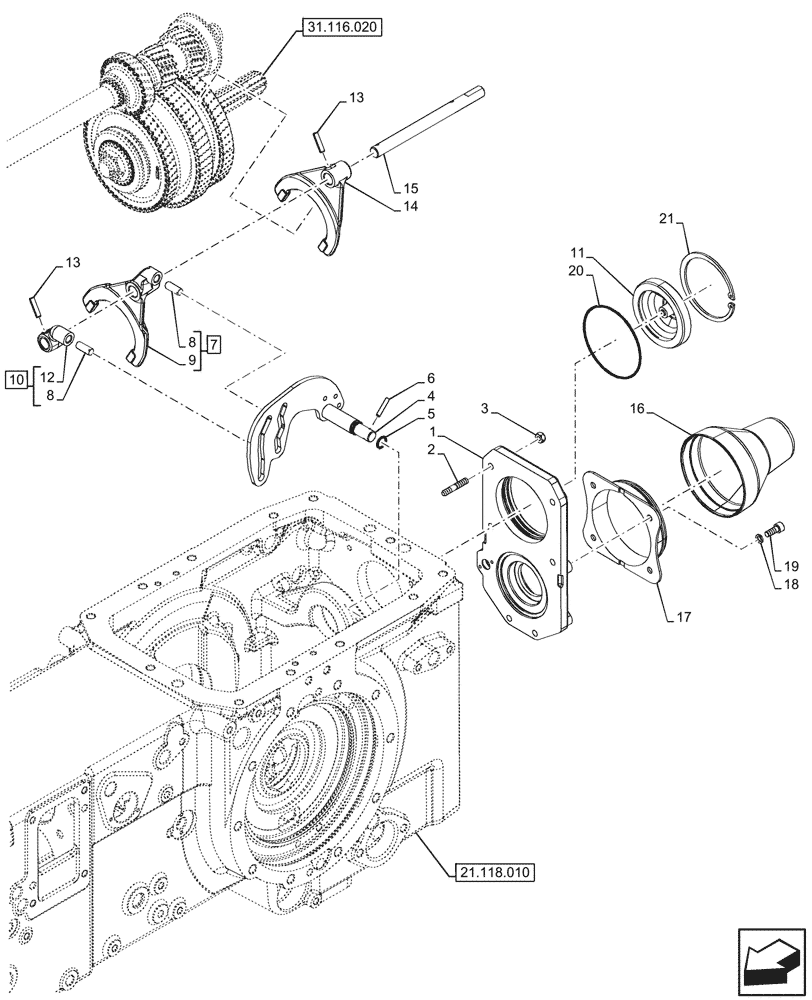

Запчасти Case IH FARMALL 110CL (31.116.010) - VAR - 330808, 330817, 333804, 758929 - PTO 540/540E/1000 RPM, FORK, SHAFT, COVER (31) - IMPLEMENT POWER TAKE OFF

1

5187934

COVER

1шт.

2

13543624

STUD,M8 x 1.25 x 46mm L, 22 Thd, Cl 8.8

6шт.

3

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

6шт.

4

5198847

PIN

1шт.

5

14457281

O-RING,0.612" ID x 0.103" Width

1шт.

6

14601270

ROLL PIN,M5 x 28, Slotted

1шт.

7

5198910

SHIFTER FORK

ASSY, Incl 8 (Qty 1), 9

1шт.

8

5154545

PIN,10mm OD x 25mm L

2шт.

9

5198845

YOKE,16mm Hole Dia

1шт.

10

5198858

DOG

ASSY, Incl 8 (Qty 1), 12

1шт.

11

47133662

COVER

1шт.

12

5198846

DOG

1шт.

13

14604070

LOCK PIN,M6 x 28, Slotted

2шт.

14

5180677

YOKE,16mm Hole Dia

1шт.

15

5173455

ROD,16mm OD x 206mm L

1шт.

16

5171520

SHIELD,132mm L

1шт.

17

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

18

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

19

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

20

14466080

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

21

11062976

SNAP RING,Int, M100 x 3

1шт.
