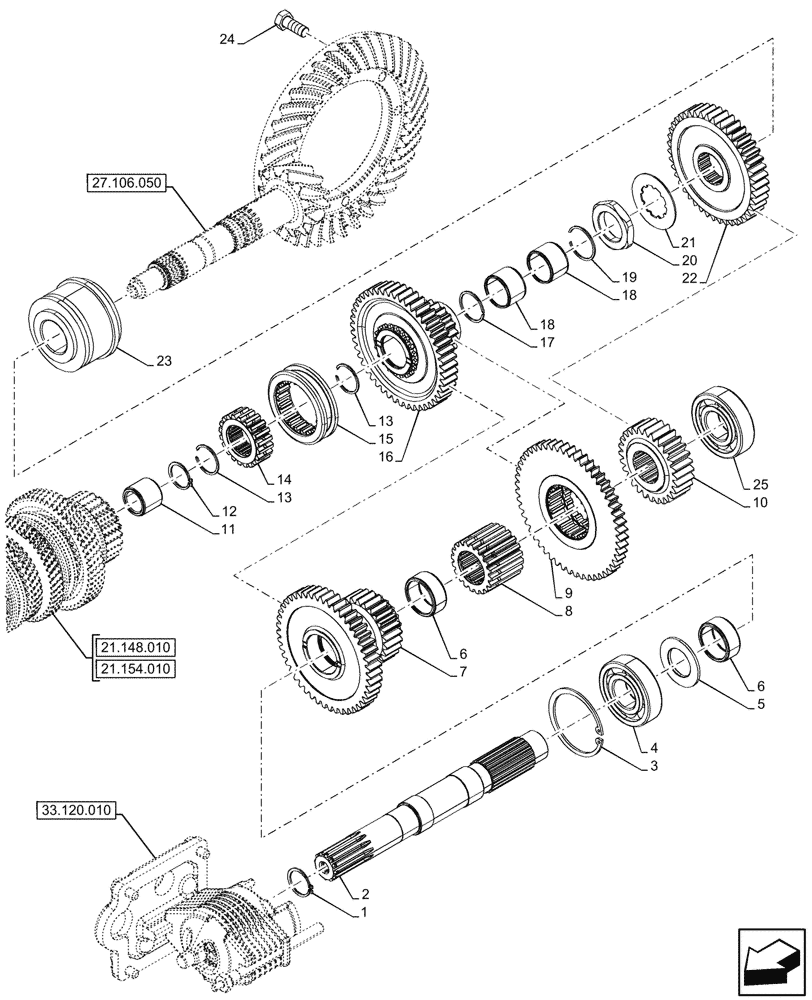

Запчасти Case IH FARMALL 110CL (27.106.030) - VAR - 759008 - REAR AXLE, CENTRAL REDUCTION GEAR, (40KM/H), 4WD (27) - REAR AXLE SYSTEM

1

11068076

SNAP RING,M32, Ext

1шт.

2

47132215

SHAFT,336mm

336mm

1шт.

3

11061976

SNAP RING,M80, Int

1шт.

4

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

1шт.

5

5168181

THRUST WASHER,35.1mm ID x 50mm OD x 4mm Thk

OD 60mm, ID 35mm

1шт.

6

5168209

ROLLER BEARING,40mm ID x 48mm OD x 20mm W

2шт.

7

84521163

GEAR,47T / 25T

T47, T25

1шт.

8

5180744

DRIVE BUSHING,40T

T40

1шт.

9

5180745

GEAR,52T / 20T

T52, T20

1шт.

10

84521179

GEAR,28T

T28

1шт.

11

5168207

ROLLER BEARING,25mm ID x 35mm OD x 30mm W

1шт.

12

11067876

SNAP RING,M30, Ext

1шт.

13

5116573

CIRCLIP,34.1mm ID x 36.4mm OD

ID 36.4mm

2шт.

14

87576349

GEAR,22T

T22

1шт.

15

5175992

SLEEVE,59mm ID x 89.5mm OD x 24mm L

T20

1шт.

16

84521183

GEAR,47T / 19T

T47, T19

1шт.

17

87576350

SNAP RING,M33.2

ID 33.2mm

1шт.

18

5168196

ROLLER CAGE BEARING,35mm ID x 40mm OD x 27mm W

2шт.

19

5168197

SNAP RING,1.5mm Thk, Int

1шт.

20

5171819

NUT,M38x1

M38x1

1шт.

21

5168182

LOCK WASHER,36mm ID x 68mm OD x 1.5mm Tnk

OD 68mm

1шт.

22

87384791

GEAR,43T

T43

1шт.

23

5168205

BEARING ASSY,40mm ID x 97mm OD x 63mm W

1шт.

24

14274531

BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9

8шт.

25

5182641

BEARING, ROLLER, CYL,35mm ID x 80mm OD x 21mm W

1шт.
