Запчасти Case IH FARMALL 110CL (25.100.070) - VAR - 332328 - 4WD FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL (RATIO 16), HOUSING (25) - FRONT AXLE SYSTEM

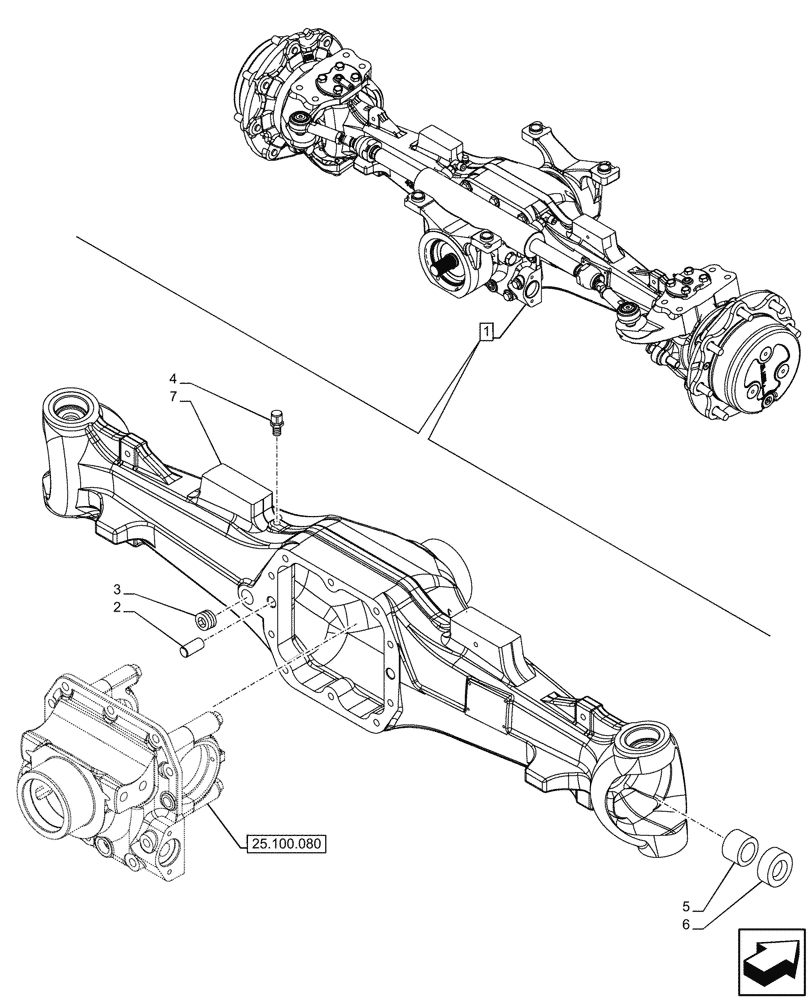

Схема запчастей Case IH FARMALL 110CL - (25.100.070) - VAR - 332328 - 4WD FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL (RATIO 16), HOUSING (25) - FRONT AXLE SYSTEM
25.100.080
5
1
2
3
6
4
7

Артикул

Название

Примечание

Количество

1

47625659

FRONT AXLE

ASSY, Incl 2 - 7

1шт.

See also Front Axle Components in Figures 25.100.080, 25.102.030, 25.102.040, 25.108.040, 25.108.050, 25.108.060, 41.216.020

1шт.

2

6914416

PIN,18mm OD x 38mm L

2шт.

3

110782A1

PLUG, DRAIN,M24 x 1.5

M24 x 1.5

2шт.

4

5194153

BREATHER,M10 x 1

1шт.

5

5194160

BUSHING,30.05mm ID x 34.12mm OD x 30mm L

2шт.

6

87710155

SEALING RING

2шт.

7

47730043

AXLE HOUSING

1шт.

Выбрано товаров: 8
