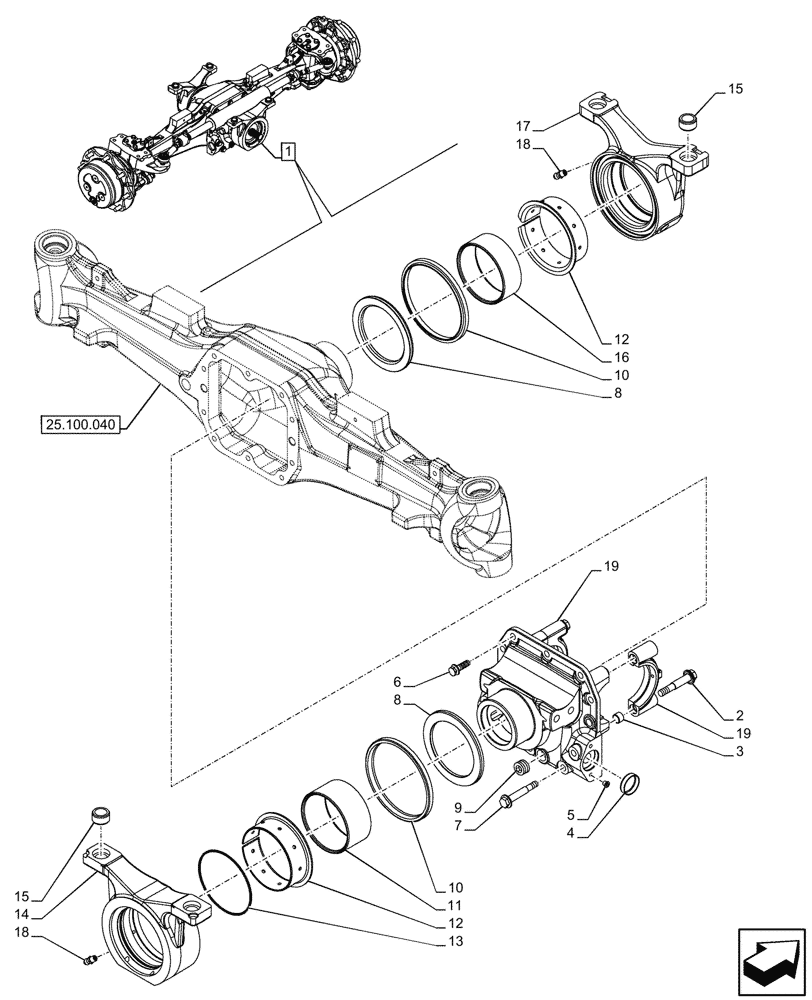

Запчасти Case IH FARMALL 110CL (25.100.050) - VAR - 332328 - 4WD FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL (RATIO 14.5), SUPPORT (25) - FRONT AXLE SYSTEM

1

47625660

FRONT AXLE

ASSY, Incl 2 - 19

1шт.

See also Front Axle Components in Figures 25.100.040, 25.102.010, 25.102.020, 25.108.010, 25.108.020, 25.108.030, 41.216.010, 41.216.030

1шт.

2

S301065

BOLT,Hex Flg, M14 x 75, 12.9

4шт.

3

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

4шт.

4

47485332

PLUG

2шт.

5

47730539

PLUG

4шт.

6

5194169

BOLT,Hex Flg, M12 x 33, 12.9

5шт.

7

128365A1

BOLT,M12 x 1.75 x 75mm

M12 x 1.75 x 75mm

5шт.

8

47730595

WASHER

2шт.

9

110782A1

PLUG, DRAIN,M24 x 1.5

M24 x 1.5

1шт.

10

47664532

SEAL

2шт.

11

47730598

BUSHING

1шт.

12

47730600

BUSHING

2шт.

13

446707A1

O-RING

1шт.

14

47730416

SUPPORT

1шт.

15

9967990

BUSHING,21mm ID x 30mm OD x 16.5mm L

4шт.

16

9967993

BUSHING,115.2mm ID x 104.3mm OD x 44mm L

1шт.

17

47730418

SUPPORT

1шт.

18

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

19

47730441

SUPPORT

1шт.
