Запчасти Case IH FARMALL 110CL (23.314.020) - 4WD FRONT AXLE, SHAFT, GUARD (23) - FOUR WHEEL DRIVE SYSTEM

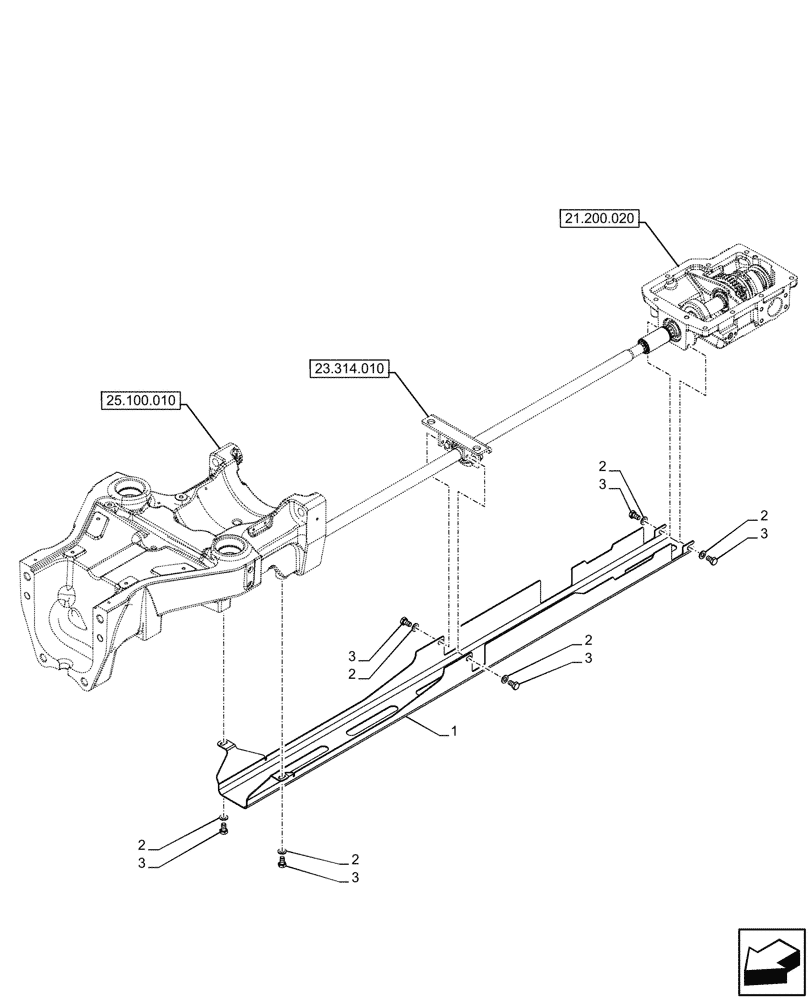

Схема запчастей Case IH FARMALL 110CL - (23.314.020) - 4WD FRONT AXLE, SHAFT, GUARD (23) - FOUR WHEEL DRIVE SYSTEM
25.100.010
2
3
2
3
2
2
1
3
2
3
3
2
23.314.010
3
21.200.020

Артикул

Название

Примечание

Количество

1

48096665

Dark Gray

SHIELD

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

6шт.

3

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

6шт.

Выбрано товаров: 3
