Запчасти Case IH FARMALL 110CL (23.314.010) - 4WD FRONT AXLE, SHAFT (23) - FOUR WHEEL DRIVE SYSTEM

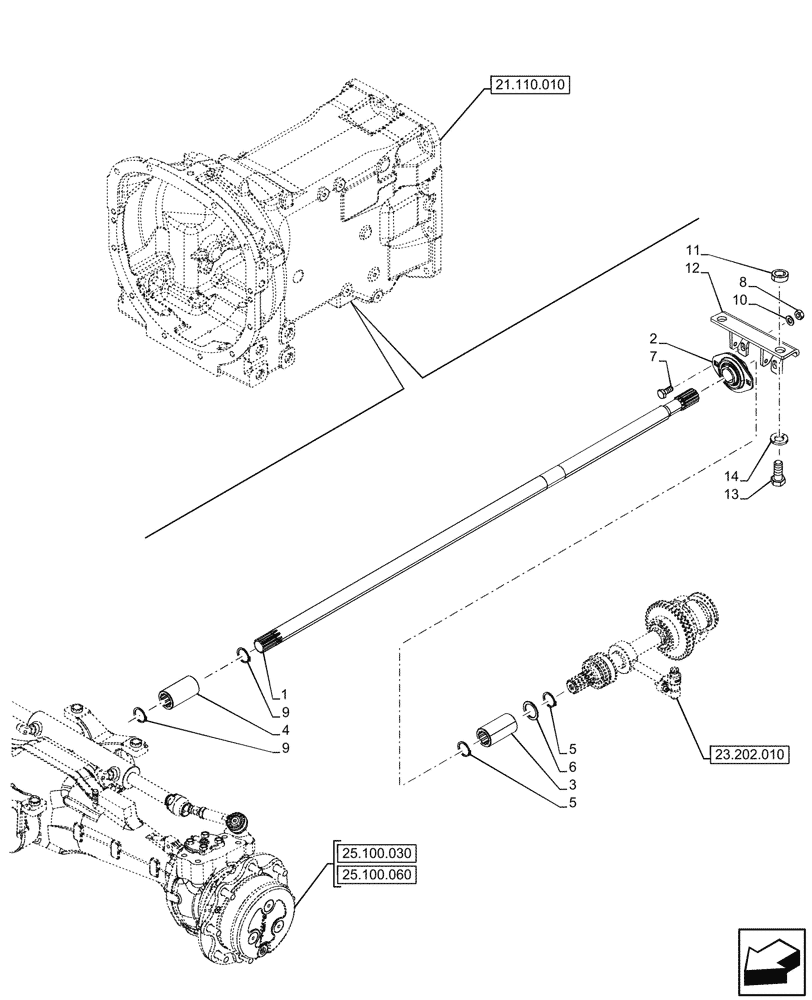

Схема запчастей Case IH FARMALL 110CL - (23.314.010) - 4WD FRONT AXLE, SHAFT (23) - FOUR WHEEL DRIVE SYSTEM
25.100.060
12
11
9
3
5
7
9
6
13
8
2
10
4
14
5
1
21.110.010
23.202.010
25.100.030

Артикул

Название

Примечание

Количество

1

84339418

PROPELLER SHAFT,1210mm

1210mm, Z 10

1шт.

2

5167098

BEARING ASSY,30mm ID

1шт.

3

5199243

SPLINED COUPLING

1шт.

4

84339441

SPLINED COUPLING,22T

1шт.

5

11067876

SNAP RING,M30, Ext

2шт.

6

5158051

SHIM,29.6mm ID x 40mm OD x 1.5mm Thk

1шт.

6

5158052

SHIM,29.6mm ID x 40mm OD x 1.9mm Thk

1шт.

6

4997301

SHIM,29mm ID x 40mm OD x 2.2mm Thk

1шт.

6

4997302

SHIM,29mm ID x 40mm OD x 2.5mm Thk

1шт.

6

4997303

SHIM,29mm ID x 40mm OD x 2.8mm Thk

1шт.

6

4997304

SHIM,29.6mm ID x 40mm OD x 3mm Thk

1шт.

6

4997305

SHIM,29.6mm ID x 40mm OD x 3.3mm Thk

1шт.

6

4997306

SHIM,29.6mm ID x 40mm OD x 3.7mm Thk

1шт.

6

4997307

SHIM,29.6mm ID x 40mm OD x 4mm Thk

1шт.

6

4997308

SHIM,29.6mm ID x 40mm OD x 4.3mm Thk

1шт.

7

15970711

SCREW,M10 x 1.25 x 25

M10 x 1.25 x 25

2шт.

8

12164714

NUT,M10 x 1.25, Cl 8

2шт.

9

11067776

SNAP RING,M29, Ext

2шт.

10

11198574

BELLEVILLE WASHER,Belleville, M10.5

2шт.

11

47949110

SPACER,18.5mm ID x 30mm OD x 10mm L

1шт.

12

84339422

SUPPORT

1шт.

13

15984124

SCREW,Hex, M18 x 1.5 x 45mm, Cl 8.8, Full Thd

1шт.

14

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

1шт.

Выбрано товаров: 23
