Запчасти Case IH FARMALL 110CL (21.154.030) - VAR - 743509 - TRANSMISSION, CLUTCH, POWERSHUTTLE (21) - TRANSMISSION

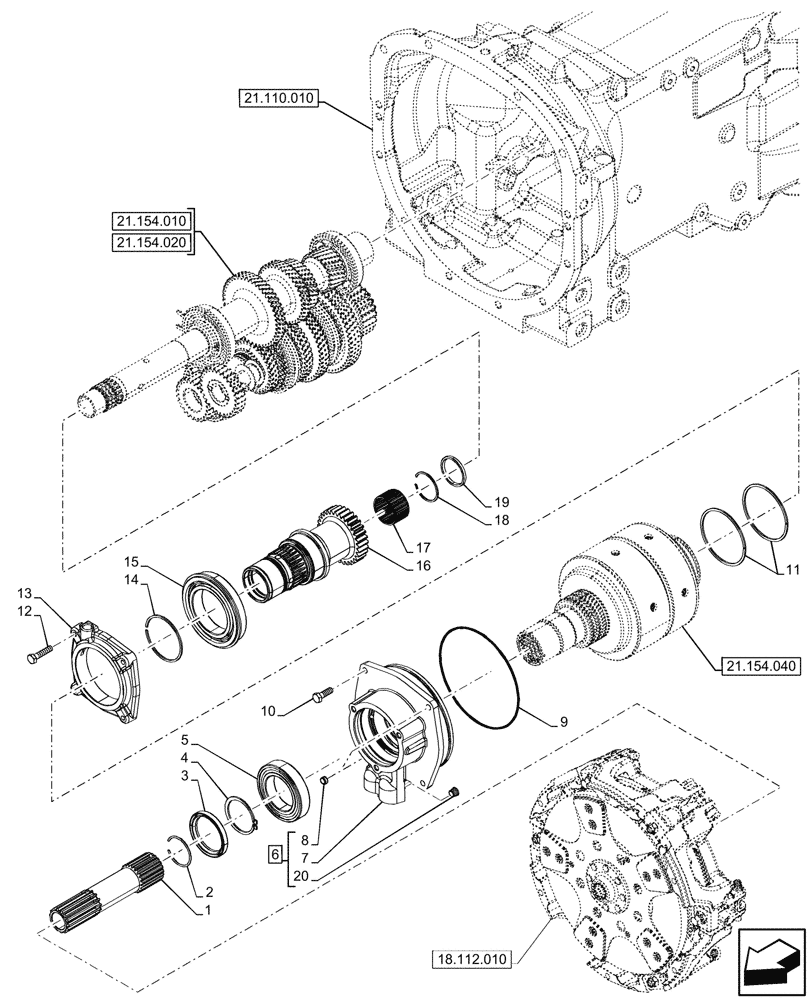

Схема запчастей Case IH FARMALL 110CL - (21.154.030) - VAR - 743509 - TRANSMISSION, CLUTCH, POWERSHUTTLE (21) - TRANSMISSION
18.112.010
14
10
13
20
2
12
9
4
16
1
15
17
3
11
6
5
7
18
19
8
21.110.010
21.154.010
21.154.040
21.154.020

Артикул

Название

Примечание

Количество

1

47962775

CLUTCH INPUT SHAFT,33.3/40.6mm ID x 39.4/44.6mm OD x 221mm L, 14/21T

Clutch Input

1шт.

2

13421976

SNAP RING,M45, Int

1шт.

3

5159078

SEAL,55mm ID x 70mm OD x 8mm Thk

1шт.

4

11069376

SNAP RING,M50, Ext

1шт.

5

5122846

BALL BEARING,55mm ID x 90mm OD x 18mm W

1шт.

6

5177559

COVER

ASSY, Incl 7, 8, 20

1шт.

7

5177558

COVER

Front

1шт.

8

5168157

BUSHING,8.5mm ID x 10.7mm OD x 5.5mm L

2шт.

9

14462180

O-RING,152.1mm ID x 2.62" Width

1шт.

10

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

11

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

2шт.

12

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

13

5176961

MANIFOLD

Clutch Oil Delivery

1шт.

14

5177510

SNAP RING,2mm Thk, Ext

1шт.

15

5168366

BALL BEARING,70mm ID x 110mm OD x 20mm W

1шт.

16

5178811

SHAFT,185mm

185mm

1шт.

17

5128943

NEEDLE BEARING,40mm ID x 45mm OD x 27mm W

1шт.

18

5139494

SNAP RING,45mm D x 1.5mm Thk, Ext

1шт.

19

5168364

SEAL,40mm ID x 47mm OD x 4mm Thk

1шт.

20

10269404

PLUG,M12 x 1.5

2шт.

Выбрано товаров: 20
