Запчасти Case IH FARMALL 110CL (21.148.030) - VAR - 743381, 743508 - TRANSMISSION, GEARS & SHAFT, SHUTTLE (21) - TRANSMISSION

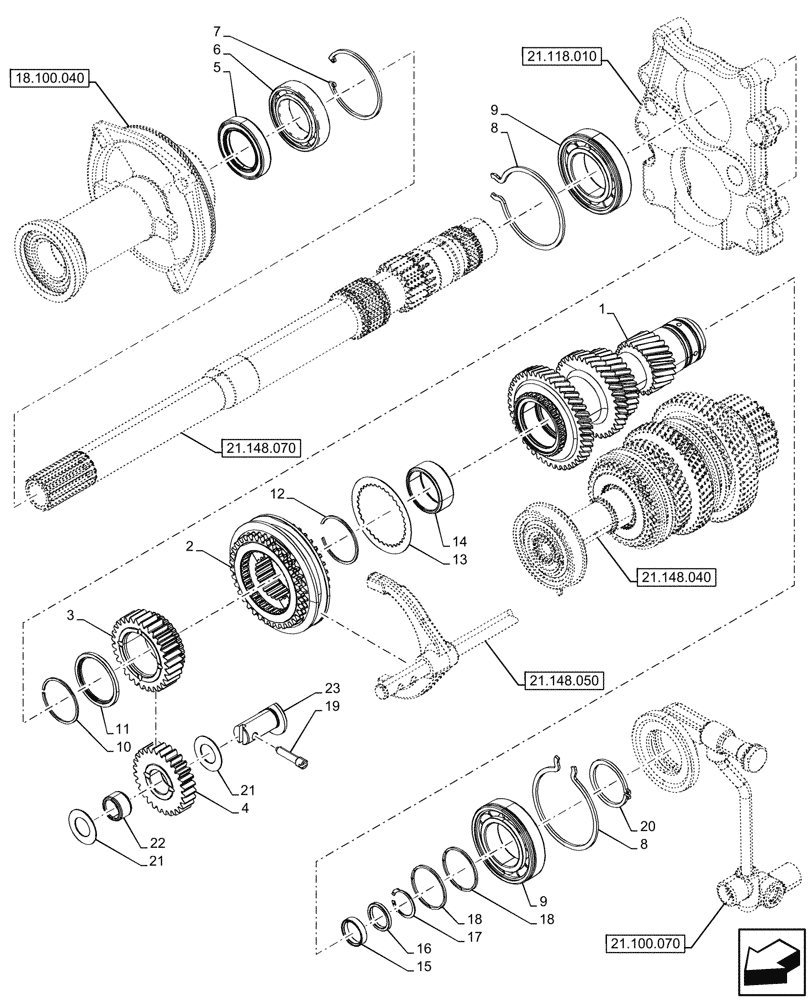

Схема запчастей Case IH FARMALL 110CL - (21.148.030) - VAR - 743381, 743508 - TRANSMISSION, GEARS & SHAFT, SHUTTLE (21) - TRANSMISSION
21.148.050
23
18
9
1
8
14
15
18
17
22
19
8
4
6
2
20
13
12
10
3
9
16
11
5
21
7
21.148.070
18.100.040
21.118.010
21.100.070
21.148.040
21

Артикул

Название

Примечание

Количество

1

84521145

GEAR

Drive Shaft, 228mm

1шт.

2

47125032

SYNCHRONIZER,82mm ID x 128mm OD x 42.9 mm L

D82mm

1шт.

3

5176906

GEAR,31T

Reverse Driver, Z 31

1шт.

4

5176919

GEAR,28T

Reverse Relay, Z 28

1шт.

5

87342469

SEAL,44.2mm ID x 68mm OD x 12mm Thk

1шт.

6

5168186

BALL BEARING,45 mm ID x 75 mm OD x 16 mm

1шт.

7

11061676

SNAP RING,M75, Int

1шт.

8

5168154

CIRCLIP,85.6mm ID x 2.6mm Thk

2шт.

9

5168187

BALL BEARING,50mm ID x 90mm OD x 20mm W

2шт.

10

5168188

SNAP RING,1.5mm Thk, Ext

1шт.

11

5168189

THRUST WASHER,50mm ID x 61.5mm OD x 4mm Thk

1шт.

12

5160929

SNAP RING,55.3mm OD x 1.5mm Width

1шт.

13

5172078

SHIM,0.5mm Thk

1шт.

14

5168192

ROLLER BEARING,45mm ID x 53mm OD x 20mm W

1шт.

15

5179747

SEAL,25mm ID x 31mm OD x 7mm Thk

1шт.

16

5181057

THRUST WASHER,25.1mm ID x 32mm OD x 4mm Thk

1шт.

17

5180152

CIRCLIP,27.8mm ID

1шт.

18

5175983

SEALING RING,46mm ID

2шт.

19

5183643

ROLL PIN,7.8mm OD x 32mm L

1шт.

20

5138419

SNAP RING,M50

1шт.

21

5176895

THRUST WASHER,22.1mm ID x 40mm OD x 1mm Thk

2шт.

22

5176908

NEEDLE BEARING,22mm ID x 28mm OD x 17mm W

1шт.

23

5176909

PIN,22mm OD x 50mm L

1шт.

Выбрано товаров: 23
