Запчасти Case IH FARMALL 110CL (21.134.230) - VAR - 759007 - POWERSHUTTLE, TRANSMISSION CONTROL VALVE, COMPONENTS, PIPE, HI-LO, W/O PARKING LOCK, CREEPER (21) - TRANSMISSION

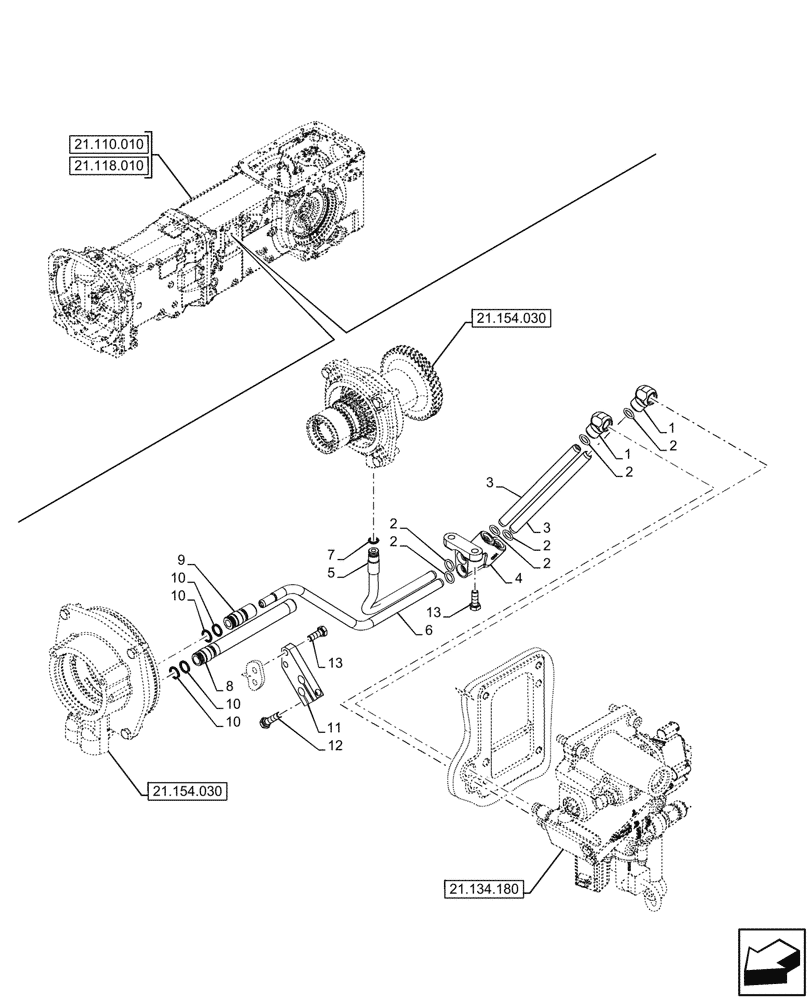

Схема запчастей Case IH FARMALL 110CL - (21.134.230) - VAR - 759007 - POWERSHUTTLE, TRANSMISSION CONTROL VALVE, COMPONENTS, PIPE, HI-LO, W/O PARKING LOCK, CREEPER (21) - TRANSMISSION
21.154.030
9
1
11
1
13
10
10
2
2
4
8
12
6
5
2
2
2
3
2
7
3
10
13
21.110.010
21.118.010
10
21.134.180
21.154.030

Артикул

Название

Примечание

Количество

1

5177627

HYD CONNECTOR,M14 x 1.5 x 24mm

2шт.

2

5103230

O-RING,2.62mm Thk x 11.91mm ID

6шт.

3

5176059

RIGID TUBE

Gear Control

2шт.

4

5177629

MANIFOLD

for Gear Control

1шт.

5

5176047

RIGID TUBE

from Power Shuttle Valve to LO

1шт.

6

5176044

RIGID TUBE

from Power Shuttle Valve to HI

1шт.

7

14456880

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

3шт.

8

5173963

RIGID TUBE

Lubrification

1шт.

9

5173962

HYD CONNECTOR,46mm L

1шт.

10

5174041

O-RING,2.62mm Thk x 13.1mm ID, 70 Duro

6шт.

11

5176052

BRACKET

Gear Control Pipes

1шт.

12

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

13

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 13
