Запчасти Case IH FARMALL 110CL (21.134.150) - VAR - 759007 - POWERSHUTTLE, TRANSMISSION CONTROL VALVE, HI-LO, W/O PARKING LOCK, CREEPER (21) - TRANSMISSION

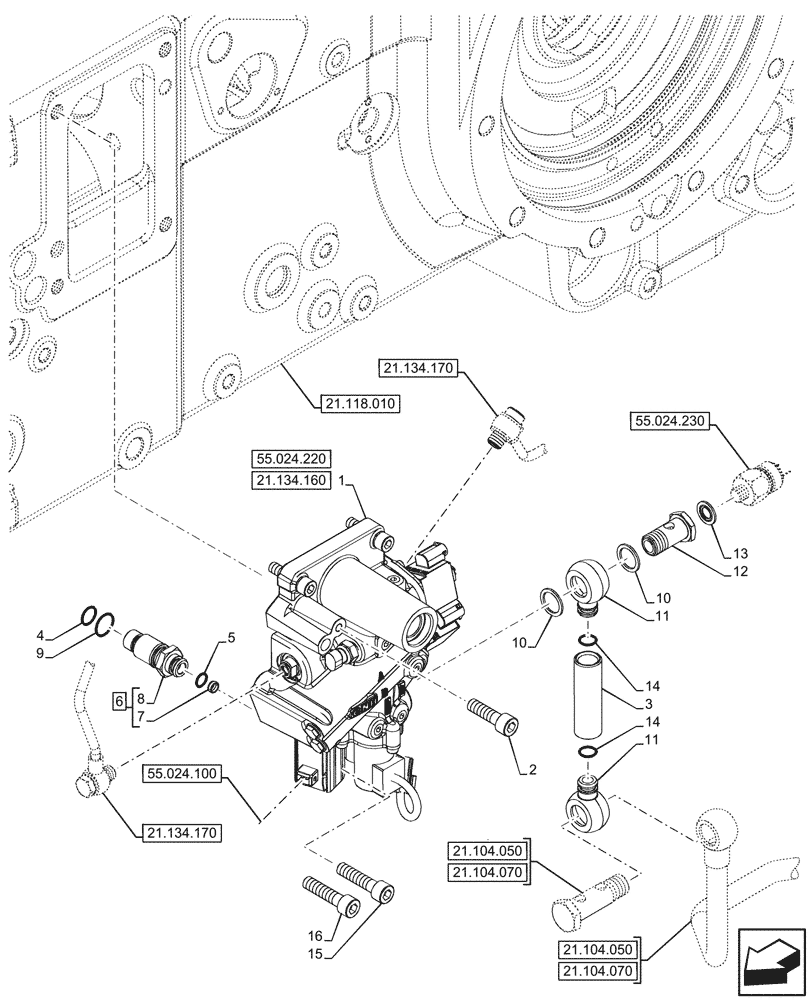

Схема запчастей Case IH FARMALL 110CL - (21.134.150) - VAR - 759007 - POWERSHUTTLE, TRANSMISSION CONTROL VALVE, HI-LO, W/O PARKING LOCK, CREEPER (21) - TRANSMISSION
21.104.070
9
6
5
15
12
7
10
10
11
2
3
8
11
13
4
16
1
14
14
21.134.160
21.118.010
21.134.170
21.134.170
55.024.230
55.024.100
55.024.220
21.104.050
21.104.050
21.104.070

Артикул

Название

Примечание

Количество

1

87494633

PRESSURE SWITCH

ASSY Incl 2 - 11

1шт.

See also Valve Distributor For Reverser Components in Figure 55.024.220

1шт.

2

14307624

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

3

5173681

RIGID TUBE

1шт.

4

5174041

O-RING,2.62mm Thk x 13.1mm ID, 70 Duro

2шт.

5

14456880

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

6

5177578

HYD CONNECTOR

2шт.

7

5176125

VALVE SEAT,3.5mm ID x 8mm OD

1шт.

8

NSS

NOT SOLD SEPARAT

Union, Incl in 6

1шт.

9

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

10

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

11

5173682

BANJO BOLT,M9 x 30mm

2шт.

12

47439020

BANJO BOLT,Hex, M12/18 x 1.5 x 35mm

1шт.

13

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

14

14456980

O-RING,10.77mm ID x 2.62mm

3шт.

15

14307724

HEX SOC SCREW,M10 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

16

14307624

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 17
