Запчасти Case IH FARMALL 110CL (21.134.050) - VAR - 743968 - POWERSHUTTLE, TRANSMISSION CONTROL VALVE, HI-LO (21) - TRANSMISSION

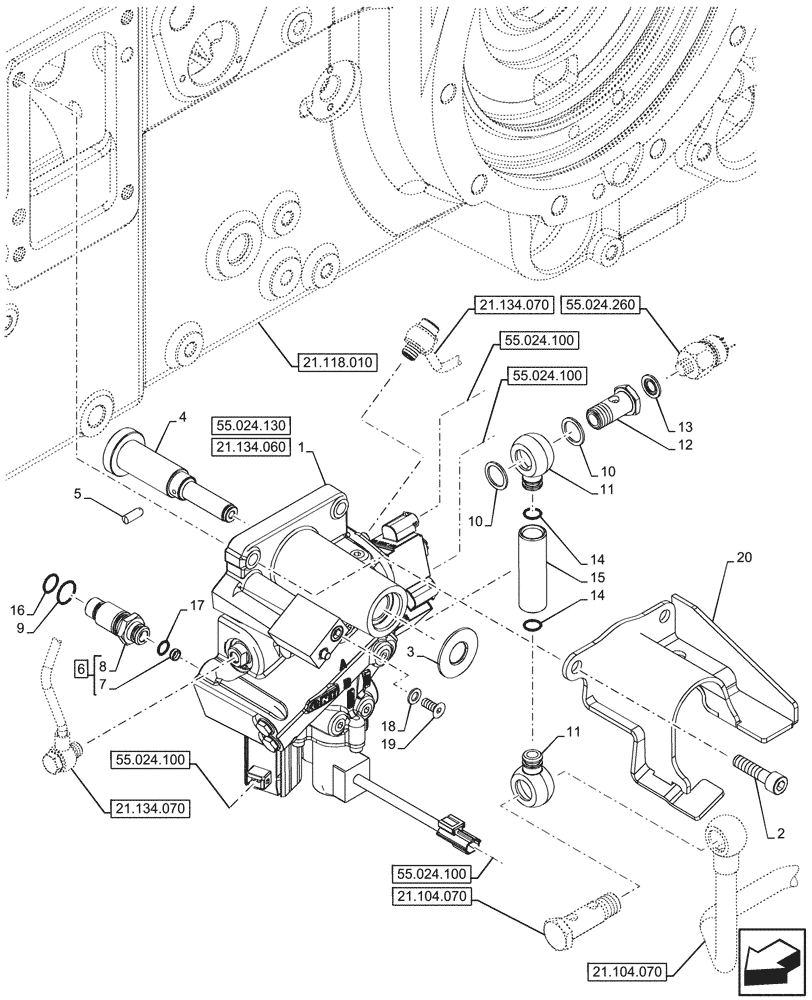

Схема запчастей Case IH FARMALL 110CL - (21.134.050) - VAR - 743968 - POWERSHUTTLE, TRANSMISSION CONTROL VALVE, HI-LO (21) - TRANSMISSION
21.134.070
14
9
3
5
4
6
20
10
19
2
11
12
15
16
18
14
17
10
1
13
8
11
21.118.010
21.134.060
7
55.024.100
55.024.100
55.024.100
55.024.100
55.024.130
55.024.260
21.104.070
21.104.070
21.134.070

Артикул

Название

Примечание

Количество

1

84553371

CONTROL VALVE

1шт.

2

14307724

HEX SOC SCREW,M10 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

3

84481853

WASHER,18.5mm ID x 43mm OD x 2mm Thk

1шт.

4

84482094

SHAFT,22mm OD x 128.5mm L

1шт.

5

837-6016

DOWEL,M6 x 16

1шт.

6

5177578

HYD CONNECTOR

ASSY, Incl 7, 8

2шт.

7

5176125

VALVE SEAT,3.5mm ID x 8mm OD

1шт.

8

NSS

NOT SOLD SEPARAT

Union, Incl in 6

1шт.

9

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

10

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

11

5173682

BANJO BOLT,M9 x 30mm

2шт.

12

47439020

BANJO BOLT,Hex, M12/18 x 1.5 x 35mm

1шт.

13

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

14

14456980

O-RING,10.77mm ID x 2.62mm

1шт.

15

5173681

RIGID TUBE

1шт.

16

5174041

O-RING,2.62mm Thk x 13.1mm ID, 70 Duro

4шт.

17

14456880

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

18

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

19

14442031

SCREW,Flat Csk Hd, M8 x 1.25 x 20mm, Cl 10.9

1шт.

20

84555957

STOP LOCK

1шт.

Выбрано товаров: 20
