Запчасти Case IH FARMALL 110CL (21.109.030) - VAR - 743524, 759011 - HEAT EXCHANGER, TRANSMISSION OIL, LINES (21) - TRANSMISSION

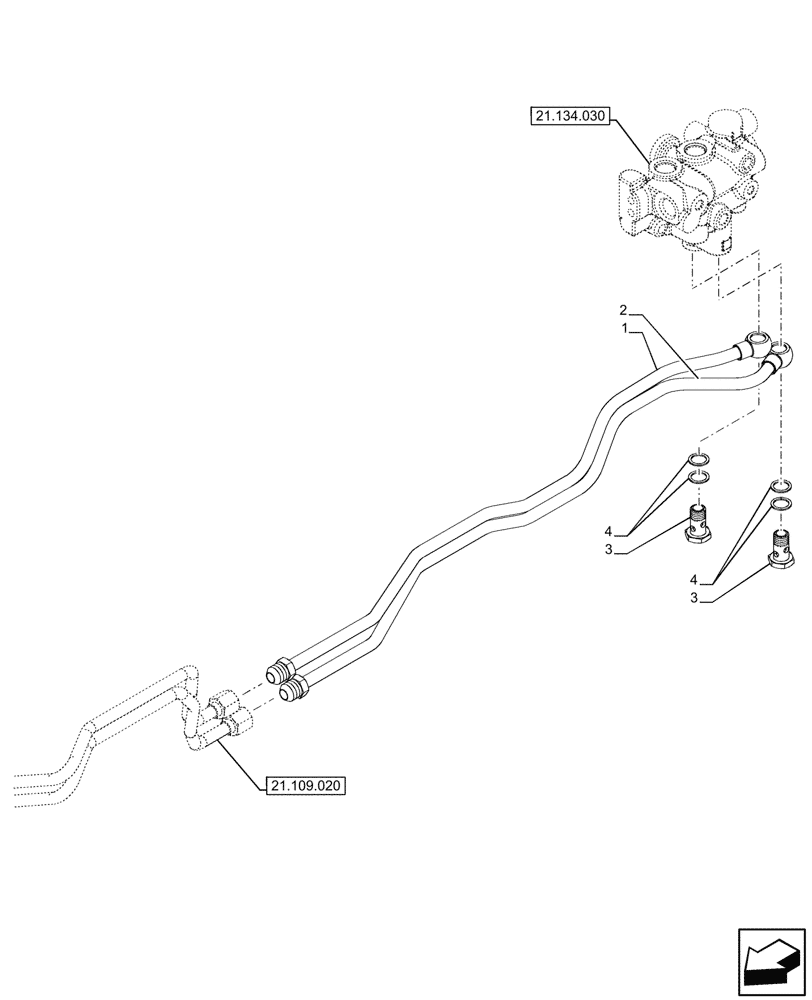

Схема запчастей Case IH FARMALL 110CL - (21.109.030) - VAR - 743524, 759011 - HEAT EXCHANGER, TRANSMISSION OIL, LINES (21) - TRANSMISSION
21.134.030
3
3
1
4
4
2
21.109.020

Артикул

Название

Примечание

Количество

1

47954701

PIPE

from Oil Cooler Line to Electrohydraulic Differential Lock

1шт.

2

47950507

PIPE

from Electrohydraulic Differential Lock Line to Oil Cooler

1шт.

3

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

4

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

4шт.

Выбрано товаров: 4
