Запчасти Case IH FARMALL 110CL (21.109.020) - VAR - 743524, 759011 - HEAT EXCHANGER, TRANSMISSION OIL, LINES (21) - TRANSMISSION

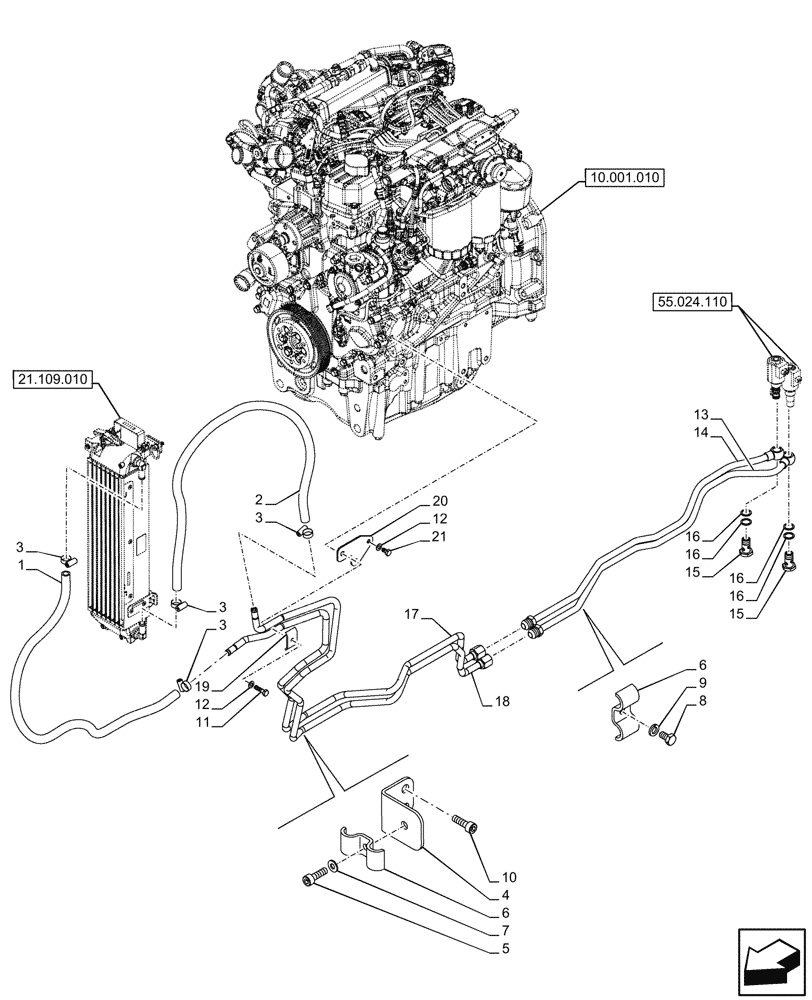

Схема запчастей Case IH FARMALL 110CL - (21.109.020) - VAR - 743524, 759011 - HEAT EXCHANGER, TRANSMISSION OIL, LINES (21) - TRANSMISSION
10.001.010
6
21
9
20
3
6
16
16
19
4
10
14
2
3
11
3
13
1
18
15
16
12
17
15
8
7
16
12
3
21.109.010
5
55.024.110

Артикул

Название

Примечание

Количество

1

47997566

RADIATOR HOSE,948mm L

from Oil Cooler to Transmission Oil Lines

1шт.

2

47997565

RADIATOR HOSE,1059mm L

from Transmission Oil Lines to Oil Cooler

1шт.

3

84499092

CLAMP,Min 14mm, Max 27mm x 14mm Thk

4шт.

4

48061003

BRACKET

1шт.

5

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

1шт.

6

5177880

CLAMP,14mm ID

2шт.

7

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

8

10902014

BOLT,Hex, M6 x 12mm, Cl 5.8, Full Thd

1шт.

9

10516474

LOCK WASHER

1шт.

10

16281924

FLANGE BOLT,Hvy Hex, M8 x 14mm, Cl 8.8, Full Thd

For Bracket Connector, Pneumatic Trailer Brake

2шт.

11

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

12

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

13

47950507

PIPE

Return, from Electrohydraulic Differential Lock Line to Oil Cooler

1шт.

14

47954701

PIPE

Supply, from Oil Cooler Line to Electrohydraulic Differential Lock

1шт.

15

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

16

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

4шт.

17

48112981

from Oil Cooler Line to Electrohydraulic Differential Lock Line

PIPE

1шт.

18

48118145

from Electrohydraulic Differential Lock Line to Oil Cooler Line

PIPE

1шт.

19

48112484

CLAMP,8.5mm ID x 25mm Thk x 48.6mm L

1шт.

20

48112985

BRACKET

1шт.

21

16043234

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

Выбрано товаров: 21
