(21.100.040) - VAR - 759011 - TRANSMISSION OIL, SUCTION PIPE, 80L/MIN, MECHANICAL, TRANSMISSION

Запчасти Case IH FARMALL 110CL (21.100.040) - VAR - 759011 - TRANSMISSION OIL, SUCTION PIPE, 80L/MIN, MECHANICAL, TRANSMISSION (21) - TRANSMISSION

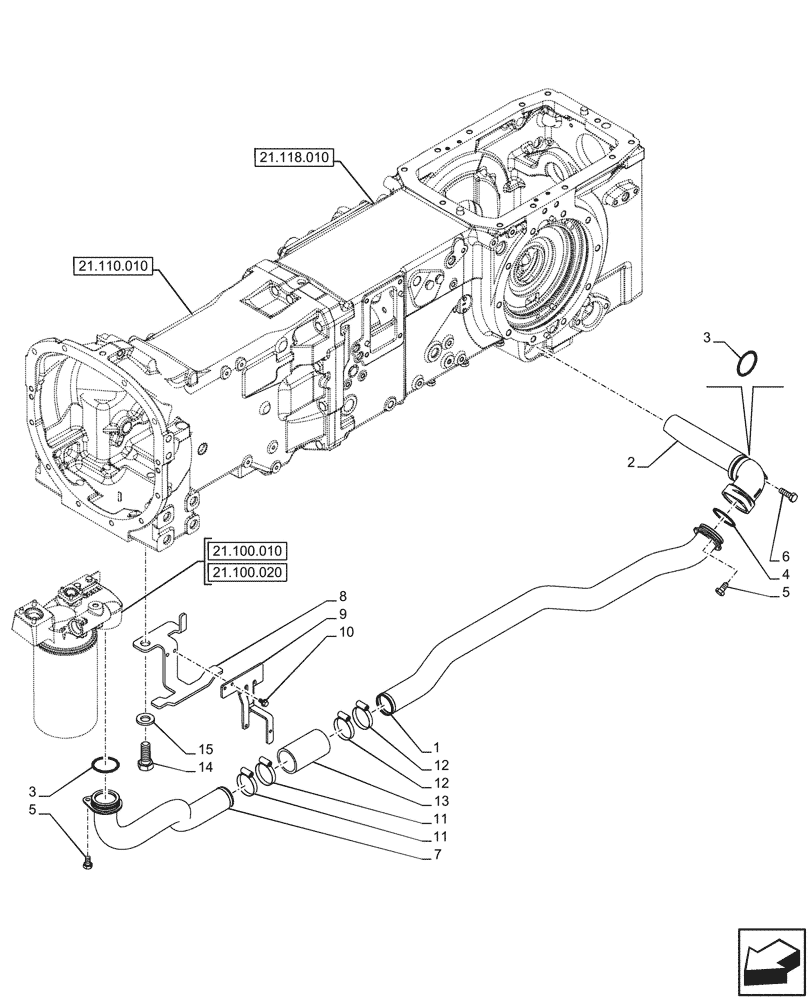

Схема запчастей Case IH FARMALL 110CL - (21.100.040) - VAR - 759011 - TRANSMISSION OIL, SUCTION PIPE, 80L/MIN, MECHANICAL, TRANSMISSION (21) - TRANSMISSION
21.100.010
12
1
3
5
11
9
3
5
13
14
4
12
6
8
7
15
21.110.010
21.118.010
11
21.100.020
10
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47464699

PIPE

Rear Suction, from Transmission

1шт.

2

47464684

SUCTION PIPE

1шт.

3

14464580

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

2шт.

4

14464480

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

6

412159

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

7

47464750

PIPE

Front Suction

1шт.

8

47950426

BRACKET

1шт.

9

47950427

BRACKET

1шт.

10

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

2шт.

11

82039348

HOSE CLAMP,40mm - 60mm

2шт.

12

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

2шт.

13

84389530

SLEEVE,48mm ID x 58mm OD x 10mm L

1шт.

14

15984124

SCREW,Hex, M18 x 1.5 x 45mm, Cl 8.8, Full Thd

1шт.

15

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

1шт.
