Запчасти Case IH FARMALL 110CL (41.216.020) - VAR - 332328 - 4WD FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL (RATIO 16), STEERING CYLINDER & TIE ROD (41) - STEERING

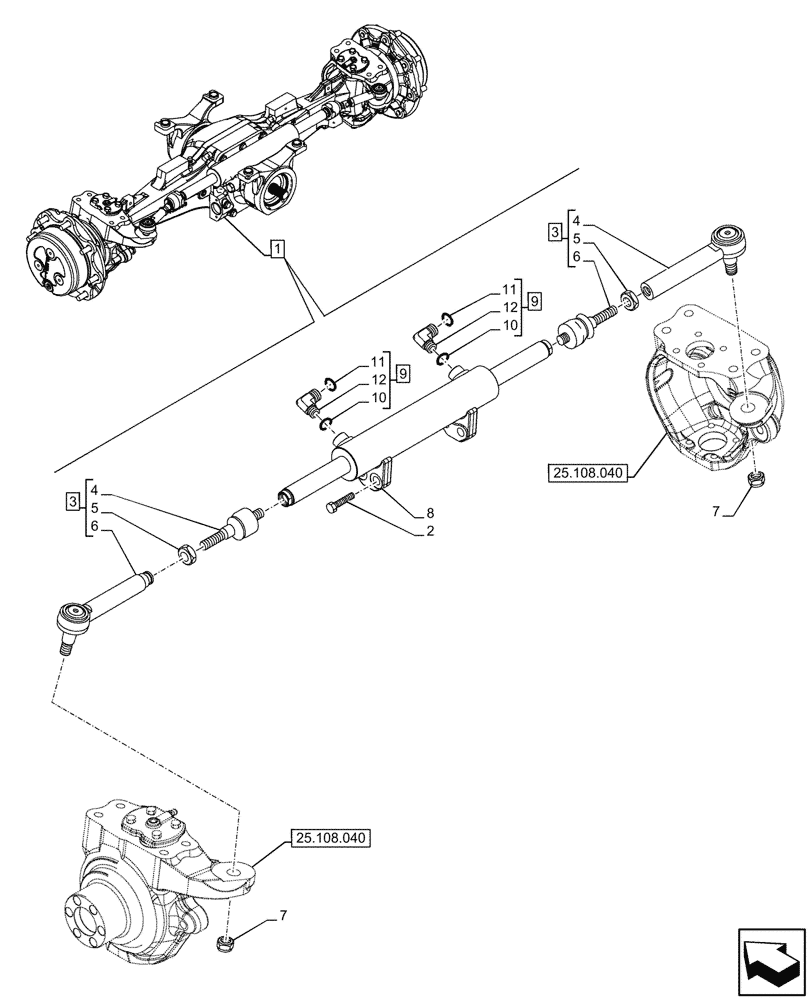

Схема запчастей Case IH FARMALL 110CL - (41.216.020) - VAR - 332328 - 4WD FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL (RATIO 16), STEERING CYLINDER & TIE ROD (41) - STEERING
25.108.040
9
6
5
10
6
4
12
5
7
11
9
7
4
10
8
3
12
2
11
1
3
25.108.040

Артикул

Название

Примечание

Количество

1

47625659

FRONT AXLE

ASSY, Incl 2 - 12

1шт.

See also Front Axle Components in Figures 25.100.070, 25.100.080, 25.102.030, 25.102.040, 25.108.040, 25.108.050, 25.108.060

1шт.

2

47730428

BOLT

4шт.

3

47730424

STEERING ARM

ASSY, Incl 4 - 6

2шт.

4

87313795

BALL JOINT,M18 / M20

2шт.

5

87313796

NUT

2шт.

6

47730426

TIE-ROD

2шт.

7

85805982

NUT,M18 x 1.5

2шт.

8

47730409

STEERING CYLINDER

1шт.

9

5188442

HYD CONNECTOR,11/16-16 ORFS x M14 x 1.5 ORB

ASSY, Incl 10 - 12

2шт.

10

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

11

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

12

NSS

NOT SOLD SEPARAT

Elbow 90°, Incl in 9

2шт.

Выбрано товаров: 13
