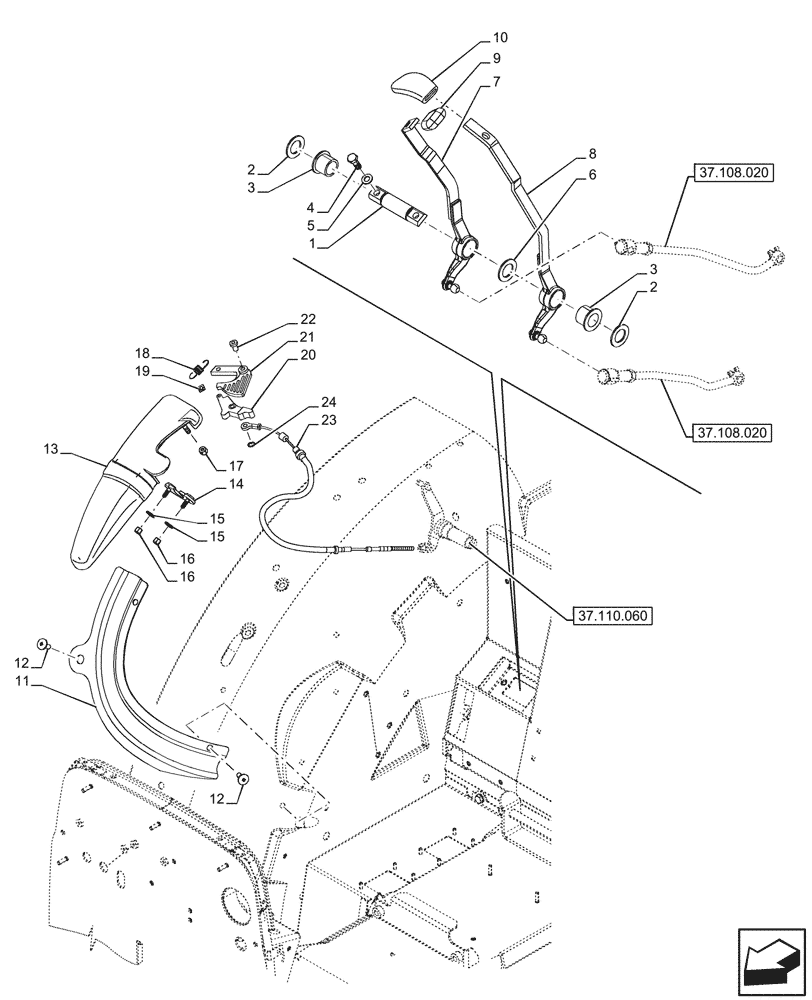

Запчасти Case IH FARMALL 110CL (37.108.010) - VAR - 759013 - LIFT-O-MATIC, CONTROL LEVER, W/O CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

5133375

PIN,20mm OD x 100mm L

1шт.

2

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

2шт.

3

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

2шт.

4

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

6

5154840

SHIM,21mm ID x 35mm OD x 2mm Thk

1шт.

7

5180655

LEVER

Control Position

1шт.

8

5180654

LEVER

Control Draft

1шт.

9

5178867

KNOB

Black

1шт.

10

5189193

KNOB

Black

1шт.

11

87305822

SHIELD

1шт.

12

5183681

SCREW,Cheese, M6 x 16mm

M6 x 16

2шт.

13

47125536

COVER

1шт.

14

5183610

COVER PLATE

1шт.

15

12642804

WASHER,4.15mm ID x 12mm OD x 1mm Thk

2шт.

16

12574021

NUT,M4 x .7, Cl 10

2шт.

17

12574221

NUT,M6 x 1, Cl 10

3шт.

18

47125931

SPRING,12mm OD x 36.6mm L

1шт.

19

11063876

SPRING CLIP,M5 x 4mm

1шт.

20

47125441

PUSH BUTTON

1шт.

21

47125450

LEVER

1шт.

22

11066976

SNAP RING,M21, Ext

2шт.

23

5176271

CABLE,1495mm L

Lift-O-Matic

1шт.

24

11087974

CIRCLIP,Ext., M8, DAC

1шт.
