(35.204.650) - VAR - 743535, 759021 - MID-MOUNT CONTROL VALVE, LINES, STABILIZER

Запчасти Case IH FARMALL 110CL (35.204.650) - VAR - 743535, 759021 - MID-MOUNT CONTROL VALVE, LINES, STABILIZER (35) - HYDRAULIC SYSTEMS

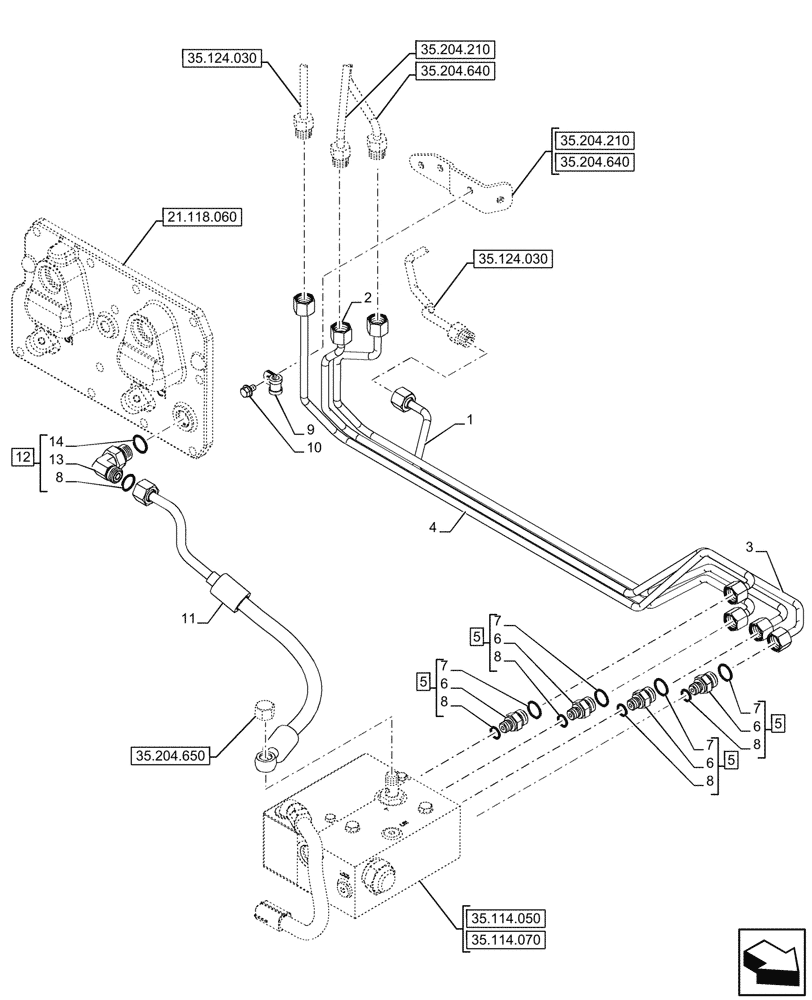

Схема запчастей Case IH FARMALL 110CL - (35.204.650) - VAR - 743535, 759021 - MID-MOUNT CONTROL VALVE, LINES, STABILIZER (35) - HYDRAULIC SYSTEMS
35.204.640
9
12
7
2
5
7
8
8
5
10
8
7
6
4
7
1
5
13
8
6
6
3
8
11
14
6
5
35.124.030
35.124.030
21.118.060
35.204.650
35.204.210
35.204.210
35.114.050
35.114.070
35.204.640
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47974799

PIPE

To Stabilizer

1шт.

2

47974803

PIPE

To Stabilizer

1шт.

3

47974809

PIPE

To Stabilizer

1шт.

4

47974807

PIPE

To Stabilizer

1шт.

5

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

ASSY, Incl 6, 7, 8 (Qty 4)

4шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

4шт.

7

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

4шт.

8

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

5шт.

9

10441190

CLAMP,8mm, Coat, 7mm Bolt Hole, P Type

1шт.

10

16297624

FLANGE BOLT,Hvy Hex, M6 x 10mm, Cl 8.8, Full Thd

1шт.

11

48092219

Discharge, Stabilizer

PIPE

1шт.

12

86579688

ELBOW,90 Degree, 11/16"-18 ORFS x M18 x 1.5 ORB

ASSY, Incl 8 (Qty 1), 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Elbow 90°, Incl in 12

1шт.

14

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.
