Запчасти Case IH FARMALL 110CL (35.204.340) - VAR - 759023, 759024 - 3 REMOTE CONTROL VALVES, LINES (35) - HYDRAULIC SYSTEMS

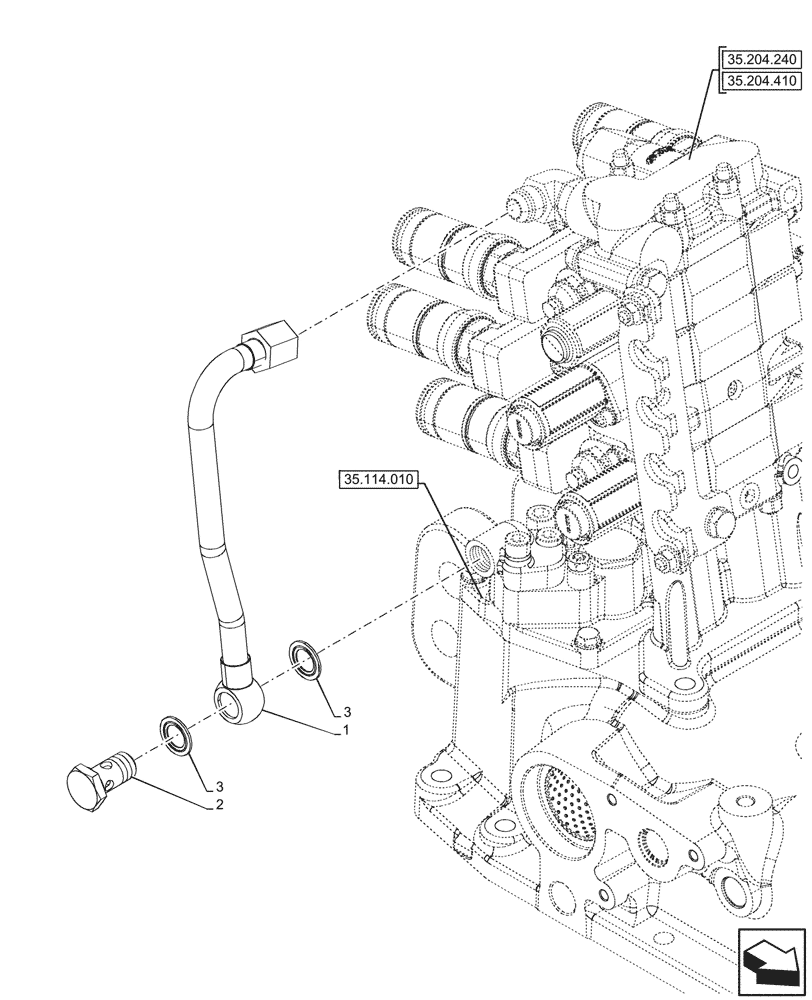

Схема запчастей Case IH FARMALL 110CL - (35.204.340) - VAR - 759023, 759024 - 3 REMOTE CONTROL VALVES, LINES (35) - HYDRAULIC SYSTEMS
35.204.240
1
2
3
35.114.010
35.204.410
3

Артикул

Название

Примечание

Количество

1

5188499

RIGID TUBE

Delivery Pipe, from 3 Remote Control Valve to Power Lift Control Valve

1шт.

2

5184345

BANJO BOLT,M18 x 1.5 x 34mm

1шт.

3

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

Выбрано товаров: 3
