Запчасти Case IH FARMALL 110CL (27.120.030) - VAR - 759008 - REAR AXLE, FINAL DRIVE, DRIVE GEAR SHAFT, (40KM/H), 4WD (27) - REAR AXLE SYSTEM

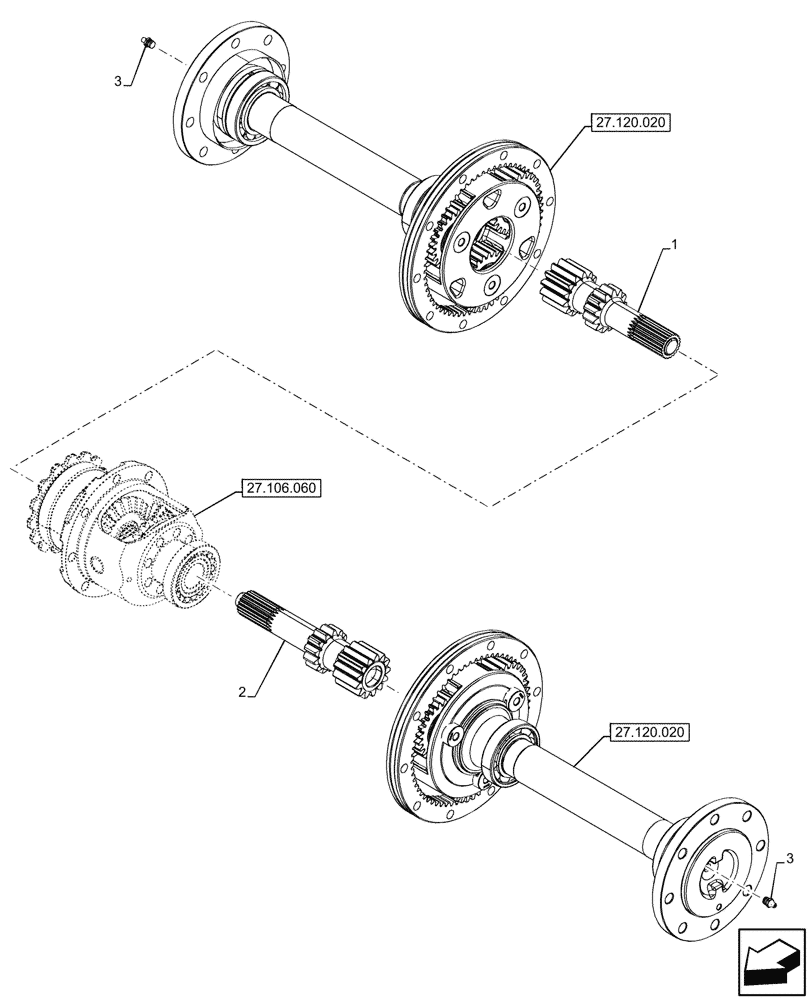

Схема запчастей Case IH FARMALL 110CL - (27.120.030) - VAR - 759008 - REAR AXLE, FINAL DRIVE, DRIVE GEAR SHAFT, (40KM/H), 4WD (27) - REAR AXLE SYSTEM
27.120.020
3
3
2
1
27.106.060
27.120.020

Артикул

Название

Примечание

Количество

1

84521184

SHAFT,212.5mm

RH, 212.5mm, Z25, Z13

1шт.

2

84521261

SHAFT,244.5mm

LH, 244.5mm, Z25, Z13

1шт.

3

13407211

LUBE NIPPLE,M10 x 1

2шт.

Выбрано товаров: 3
