Запчасти Case IH FARMALL 110CL (27.106.060) - VAR - 759008 - REAR AXLE, DIFFERENTIAL, (40KM/H), 4WD (27) - REAR AXLE SYSTEM

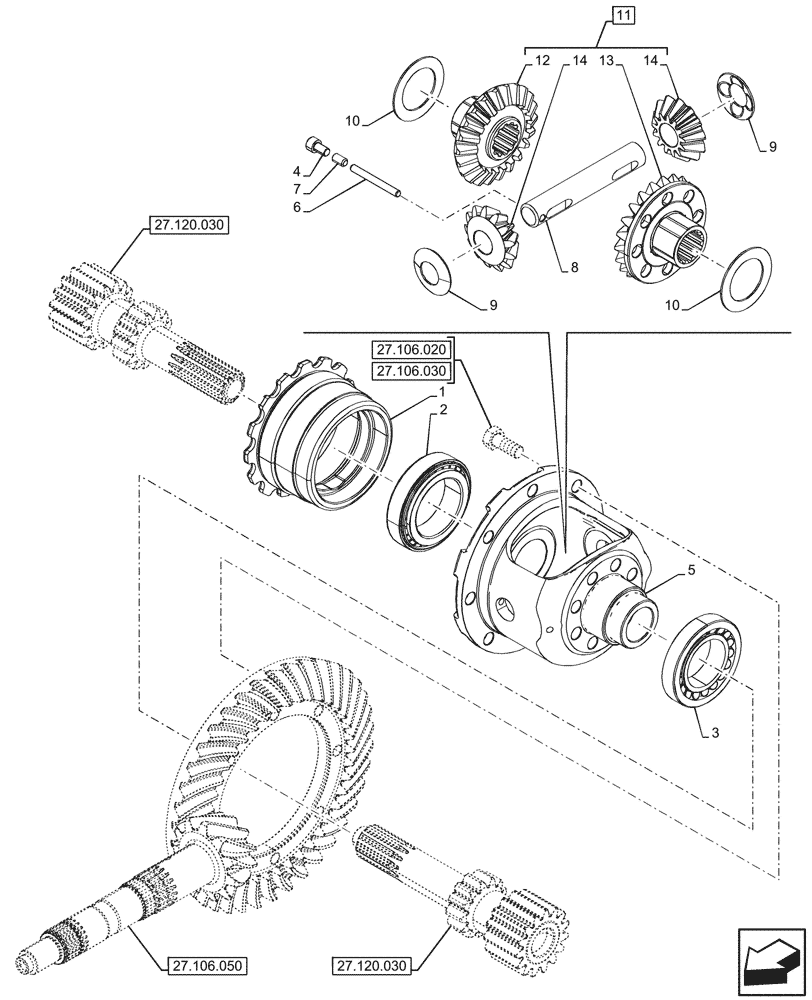

Схема запчастей Case IH FARMALL 110CL - (27.106.060) - VAR - 759008 - REAR AXLE, DIFFERENTIAL, (40KM/H), 4WD (27) - REAR AXLE SYSTEM
27.106.050
10
10
9
14
11
7
1
8
3
12
6
9
13
5
4
14
2
27.106.030
27.106.020
27.120.030
27.120.030

Артикул

Название

Примечание

Количество

1

87362211

SUPPORT

1шт.

2

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

1шт.

3

87312350

TAPERED BEARING,50mm ID x 90mm OD x 21.75mm W

1шт.

4

14307024

HEX SOC SCREW,M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

5

87312351

CARRIER

1шт.

6

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

7

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

8

5148935

PIN,24mm OD x 144mm L

1шт.

9

4987975

THRUST WASHER,24mm ID x 48mm OD

2шт.

10

5148940

THRUST WASHER,44mm ID x 66mm OD x 1.4mm Thk

1шт.

10

5148939

THRUST WASHER,44mm ID x 66mm OD x 1.5mm Thk

1шт.

10

5148936

THRUST WASHER,44mm ID x 66mm OD x 1.6mm Thk

2шт.

10

5148938

THRUST WASHER,44mm ID x 66mm OD x 1.7mm Thk

1шт.

10

5148937

THRUST WASHER,44mm ID x 66mm OD x 1.8mm Thk

1шт.

10

5167387

THRUST WASHER,44mm ID x 66mm OD x 1.9mm Thk

1шт.

10

5167388

THRUST WASHER,44mm ID x 66mm OD x 2mm Thk

1шт.

10

5181356

THRUST WASHER,44.00mm ID x 66.00mm OD x 2.1mm T

1шт.

10

5181357

THRUST WASHER,44.00mm ID x 66.00mm OD x 2.2mm T

1шт.

11

47137922

GEAR SET

ASSY, Incl 12 - 14

1шт.

12

47137061

DRIVEN SPROCKET

1шт.

13

47137062

DRIVEN SPROCKET

1шт.

14

5103870

PINION,24mm ID, 13T

2шт.

Выбрано товаров: 22
