Запчасти Case IH FARMALL 110CL (25.102.010) - VAR - 332328 - 4WD FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL (RATIO 14.5), DIFFERENTIAL (25) - FRONT AXLE SYSTEM

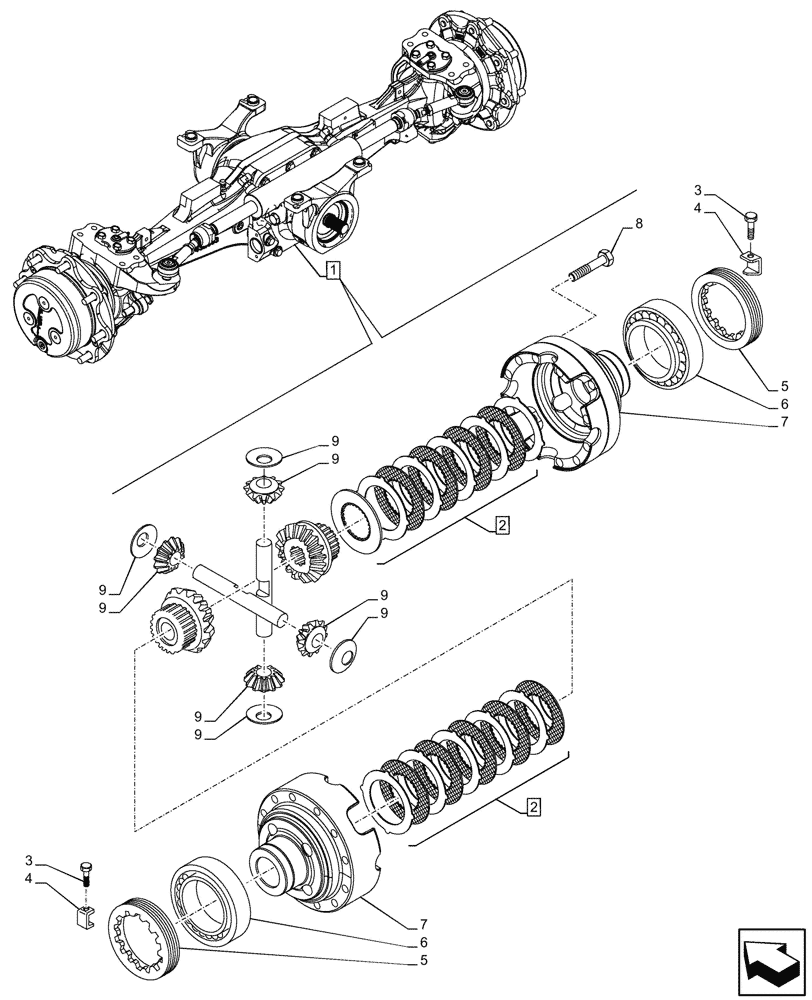

Схема запчастей Case IH FARMALL 110CL - (25.102.010) - VAR - 332328 - 4WD FRONT AXLE, W/ LIMITED SLIP DIFFERENTIAL (RATIO 14.5), DIFFERENTIAL (25) - FRONT AXLE SYSTEM
9
8
3
9
9
7
7
2
4
9
9
5
9
2
9
3
5
1
6
9
6
4

Артикул

Название

Примечание

Количество

1

47625660

FRONT AXLE

ASSY, Incl 2 - 9

1шт.

See also Front Axle Components in Figures 25.100.040, 25.100.050, 25.102.020, 25.108.010, 25.108.020, 25.108.030, 41.216.010, 41.216.030

1шт.

2

47730449

CLUTCH DISC

2шт.

3

112486A1

BOLT,Hex, M6 x 12

2шт.

4

5194191

LOCKING PLATE

2шт.

5

5194190

RING NUT,M94 x 2

2шт.

6

84578839

NEEDLE ROLLER

2шт.

7

47664538

HOUSING

1шт.

8

5194194

BOLT,Hex, M10 x 75

12шт.

9

340574A1

GEAR SET

1шт.

Выбрано товаров: 10
