(90.116.160) - HARNESS, GUARD, SUPPORT, CAB

Запчасти Case IH FARMALL 100CL (90.116.160) - HARNESS, GUARD, SUPPORT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

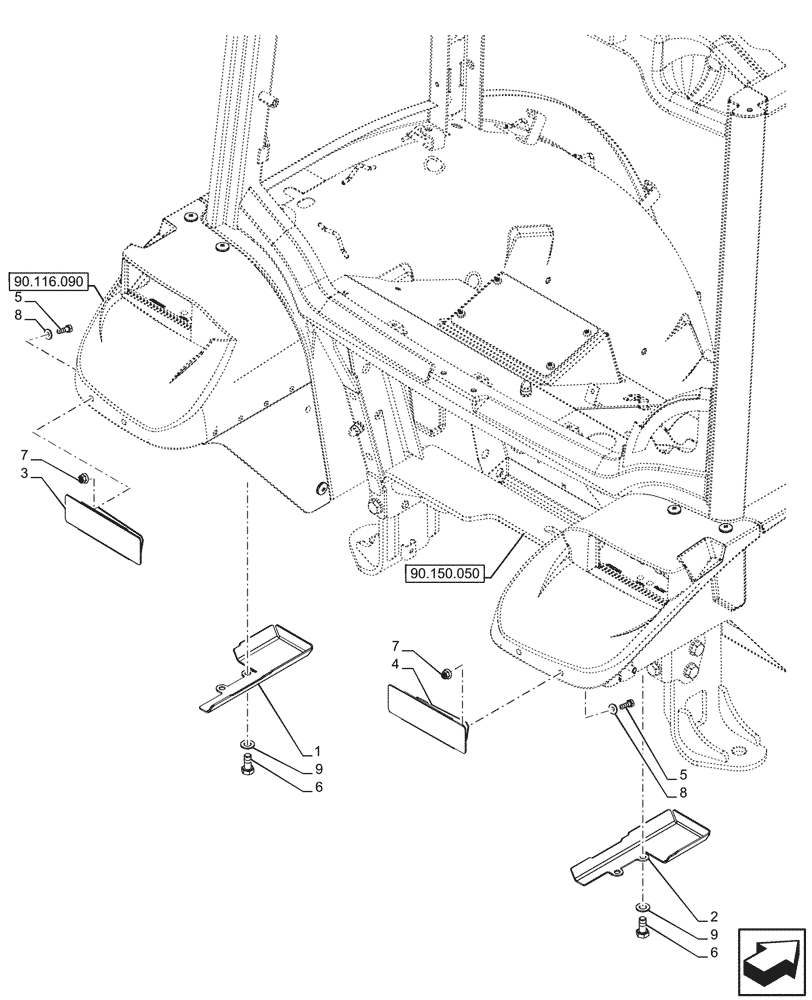

Схема запчастей Case IH FARMALL 100CL - (90.116.160) - HARNESS, GUARD, SUPPORT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.116.090
7
5
6
4
3
8
2
1
8
9
6
9
7
5
90.150.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84585482

SHROUD

Black

1шт.

2

48091066

Black

GUARD

1шт.

3

47123847

SUPPORT

LH

1шт.

4

47123846

SUPPORT

1шт.

5

10977821

BOLT,M5 x 19.65mm OAL, Cl 8.8

4шт.

6

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.

7

12578017

FLANGE NUT,Hex, M5 x 0.8, Cl 8

4шт.

8

14446915

WASHER,4.6mm ID x 12mm OD x 1mm Thk

4шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.
