Запчасти Case IH FARMALL 100CL (55.024.110) - ELECTROHYDRAULIC DIFFERENTIAL LOCK, SOLENOID (55) - ELECTRICAL SYSTEMS

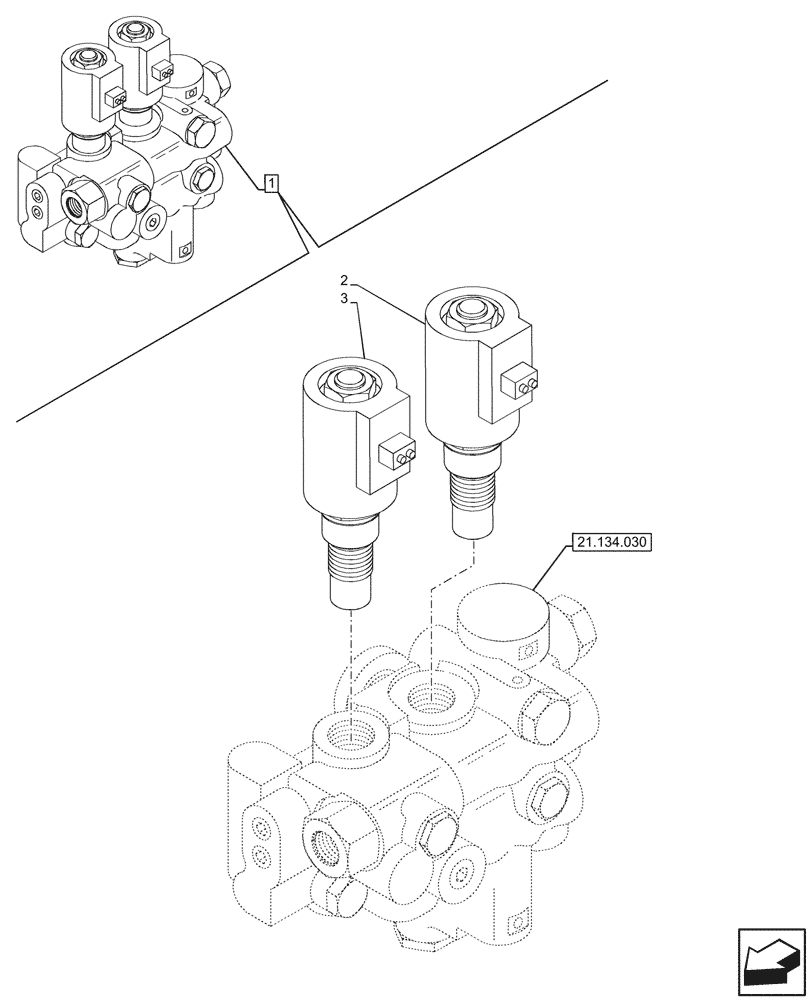

Схема запчастей Case IH FARMALL 100CL - (55.024.110) - ELECTROHYDRAULIC DIFFERENTIAL LOCK, SOLENOID (55) - ELECTRICAL SYSTEMS
21.134.030
2
3
1

Артикул

Название

Примечание

Количество

1

84209887

CONTROL VALVE

ASSY, Incl 2, 3

1шт.

See also Electrohydraulic Differential Lock Valve in Figure 21.134.030

1шт.

2

5193928

HYDRAULIC VALVE

1шт.

3

5192014

ELECTRO-VALVE,4W - 2p with diode

1шт.

Выбрано товаров: 4
