Запчасти Case IH FARMALL 100CL (41.206.040) - VAR - 743500 - POWER STEERING PUMP, LINES, VISCOUS JOINT FAN, 80L/MIN, CAB (41) - STEERING

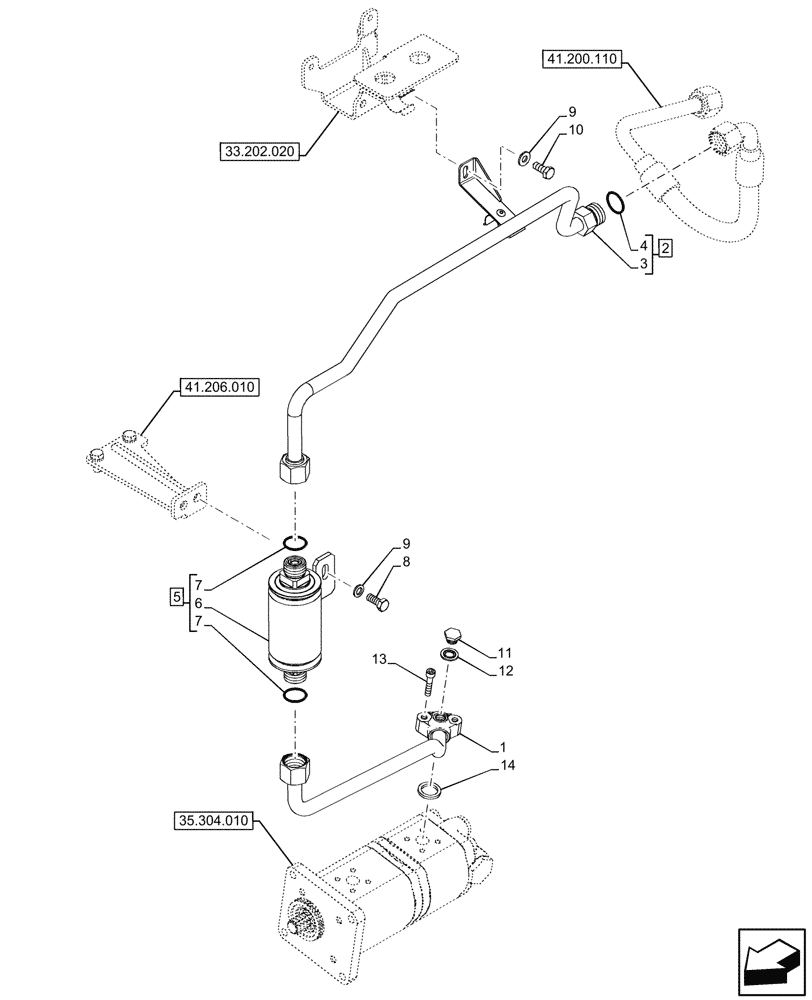

Схема запчастей Case IH FARMALL 100CL - (41.206.040) - VAR - 743500 - POWER STEERING PUMP, LINES, VISCOUS JOINT FAN, 80L/MIN, CAB (41) - STEERING
41.200.110
3
11
8
14
2
13
9
12
10
7
6
1
9
5
4
33.202.020
7
41.206.010
35.304.010

Артикул

Название

Примечание

Количество

1

47927026

PIPE

Delivery

1шт.

2

47773422

PIPE

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Pipe, Incl in 2

1шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

47465452

HYDRAULIC OIL FILTER,60mm OD x 162mm L, 1"-14 UNF

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Filter, Incl in 5

1шт.

7

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

8

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

9

11198074

BELLEVILLE WASHER,M8 Bolt Size x 15mm OD x 1.8mm Thk

1шт.

9

11188074

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

10

10902214

SCREW,Hex, M6 x 16mm

1шт.

11

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

12

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

13

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

14

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

1шт.

Выбрано товаров: 15
