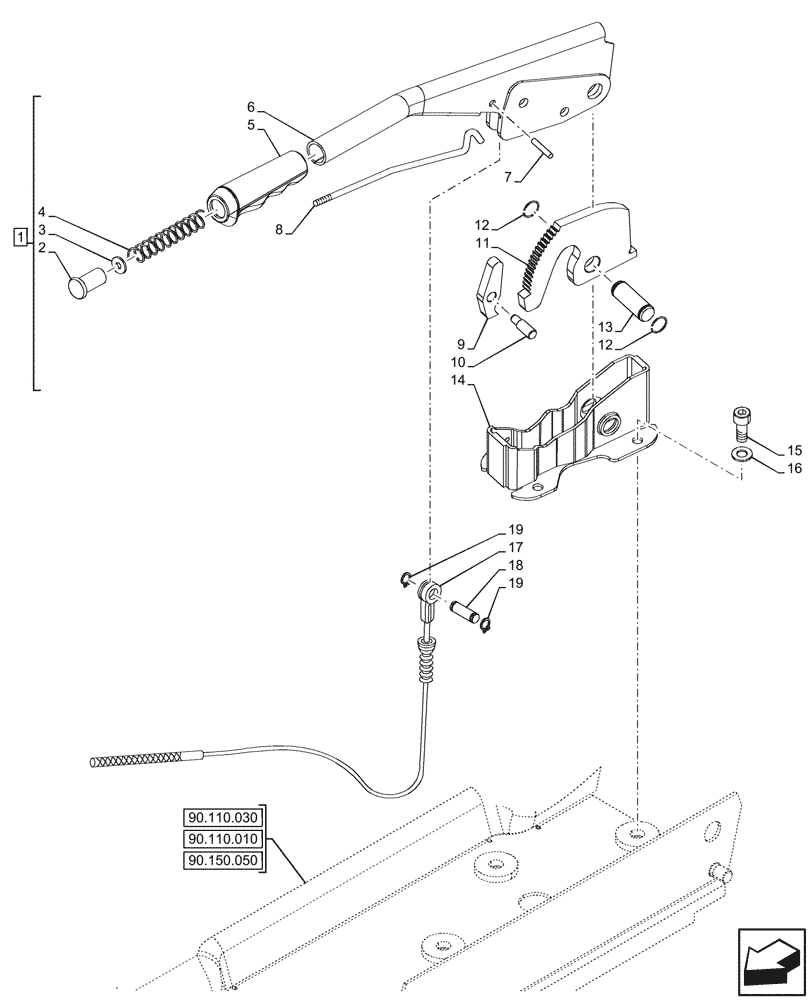

Запчасти Case IH FARMALL 100CL (33.110.010) - VAR - 759028, 759029, 759031, 759033 - HAND BRAKE, LEVER (33) - BRAKES & CONTROLS

1

87558579

LEVER

ASSY, Hand Brake, Incl 2 - 14

1шт.

2

4985122

BUTTON,5mm ID x 10mm OD x 30mm L

13mm ID x 30mm L

1шт.

3

5110154

SPRING WASHER,5.15mm ID x 14mm OD x 1.5mm Thk

1шт.

4

5105729

SPRING,14mm OD x 166.5mm L

14mm OD x 1,2mm DW x 166,5mm L

1шт.

5

5105572

HANDLE GRIP

1шт.

6

NSS

NOT SOLD SEPARAT

Lever, Incl in 1

1шт.

7

4985127

RIVET,23mm OD x 4mm D

4mm D x 23mm L

1шт.

8

47132115

TIE-ROD,5mm OD x 216mm L

M5 x 216mm L

1шт.

9

47132116

LUG

1шт.

10

5110157

PIN,8mm OD x 25.5mm L

1шт.

11

47132110

ROD-TIP

1шт.

12

13400776

LOCKING RING

2шт.

13

4988275

PIN,14mm OD x 40mm L

1шт.

14

87557193

LEVER

1шт.

15

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

16

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

17

47132954

CABLE,422mm L

422mm L

1шт.

18

5105280

PIN,8mm OD x 25.5mm L

1шт.

19

11065676

SNAP RING,M8, Ext

2шт.
