Запчасти Case IH FARMALL 100CL (21.104.060) - VAR - 743524, 759011 - TRANSMISSION OIL, MECHANICAL, TRANSMISSION (21) - TRANSMISSION

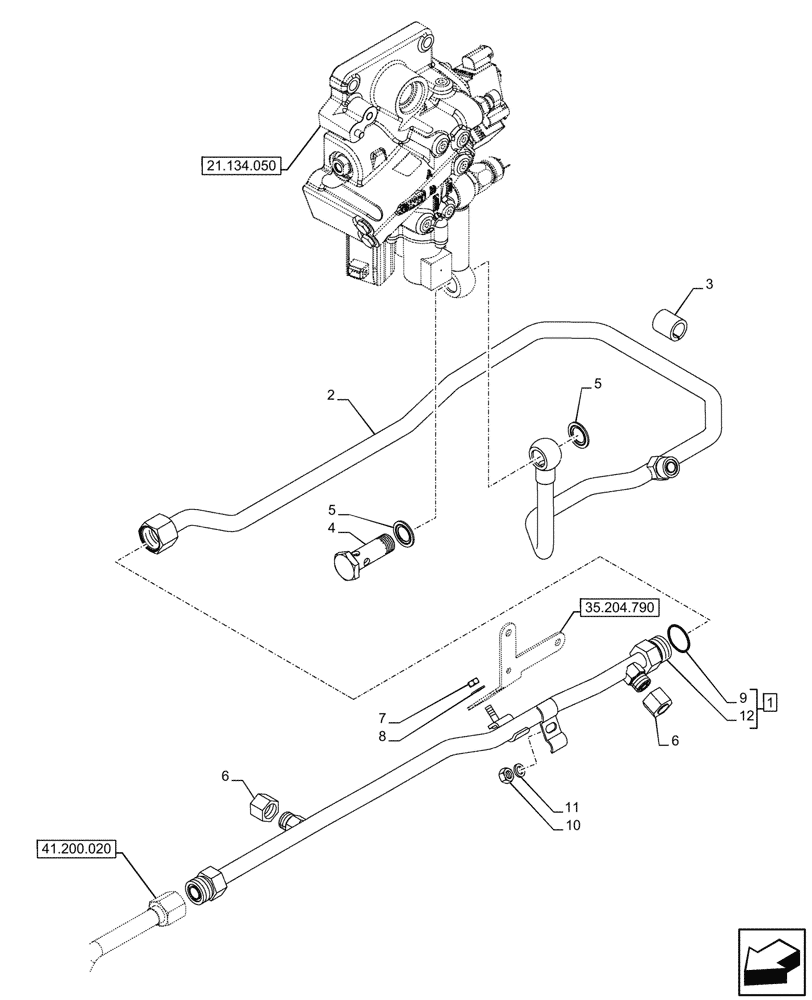

Схема запчастей Case IH FARMALL 100CL - (21.104.060) - VAR - 743524, 759011 - TRANSMISSION OIL, MECHANICAL, TRANSMISSION (21) - TRANSMISSION
21.134.050
4
5
11
1
9
3
5
12
6
10
6
2
7
8
41.200.020
35.204.790

Артикул

Название

Примечание

Количество

1

48084338

ASSY, Central, from front Pipe Filter to Transmission control Valve, Incl 9, 12

PIPE

1шт.

2

47997538

PIPE

Rear, from Central Pipe to Transmission control Valve

1шт.

3

47389651

SPACER,16mm ID x 23mm OD x 25mm L

1шт.

4

5184345

BANJO BOLT,M18 x 1.5 x 34mm

1шт.

5

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

2шт.

6

9625546

CAP,11/16" - 16 ORFS

2шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

8

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

9

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

84268307

NUT,M6 x 0.75, 8 ZND

1шт.

11

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

1шт.

12

NSS

NOT SOLD SEPARAT

Central, from front Pipe Filter to Transmission control Valve, Incl in 1

1шт.

Выбрано товаров: 12
