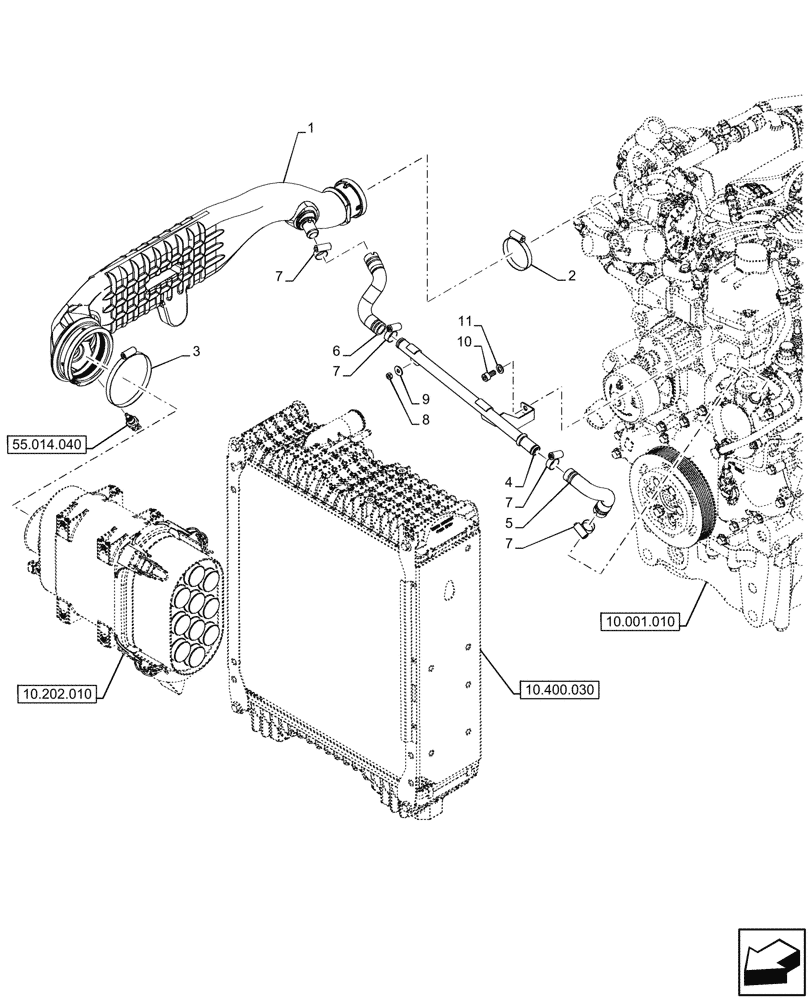

Запчасти Case IH FARMALL 100CL (10.202.020) - VAR - 759324, 759325 - AIR CLEANER, LINES (10) - ENGINE

1

47979388

DUCT

1шт.

2

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

3

13001290

HOSE CLAMP,90mm - 110mm, Worm Gear

1шт.

4

47548448

PIPE

1шт.

5

47586858

PIPE

1шт.

6

47448819

PIPE

1шт.

7

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

4шт.

8

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

9

11194774

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

10

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

11

87664049

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.
