(90.160.320) - VAR - 759022, 759023, 759024 - TRIM, LEVER, COVER, RH, W/O CAB

Запчасти Case IH FARMALL 100CL (90.160.320) - VAR - 759022, 759023, 759024 - TRIM, LEVER, COVER, RH, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

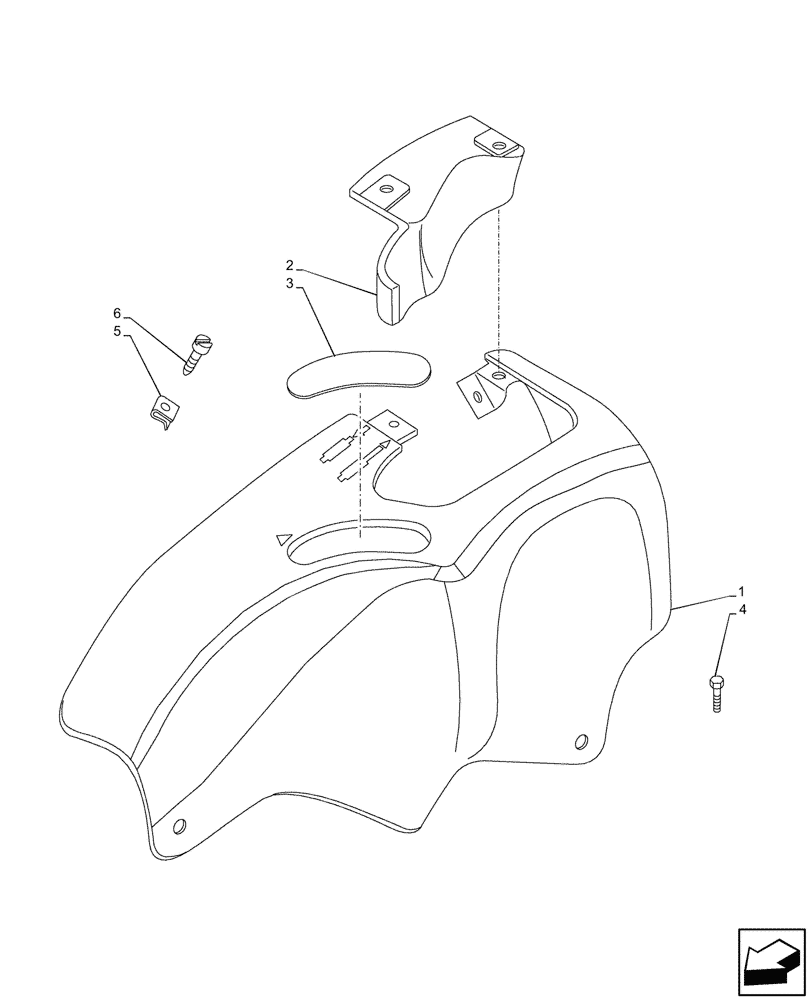

Схема запчастей Case IH FARMALL 100CL - (90.160.320) - VAR - 759022, 759023, 759024 - TRIM, LEVER, COVER, RH, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
6
4
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47932292

COVER

Black

1шт.

2

87302655

COVER

Black

1шт.

3

47932295

PLUG,135.9mm L x 9mm Thk

Black

1шт.

4

14064514

SCREW,Cheese Hd, M6 x 12mm, Cl 5.8

2шт.

5

14189976

NUT,J, #6

2шт.

6

15688004

SCREW,Pan Hd, M8 x 13

3шт.

Выбрано товаров: 6
