(27.120.080) - VAR - 759008 - REAR AXLE, SHAFT

Запчасти Case IH FARMALL 100CL (27.120.080) - VAR - 759008 - REAR AXLE, SHAFT (27) - REAR AXLE SYSTEM

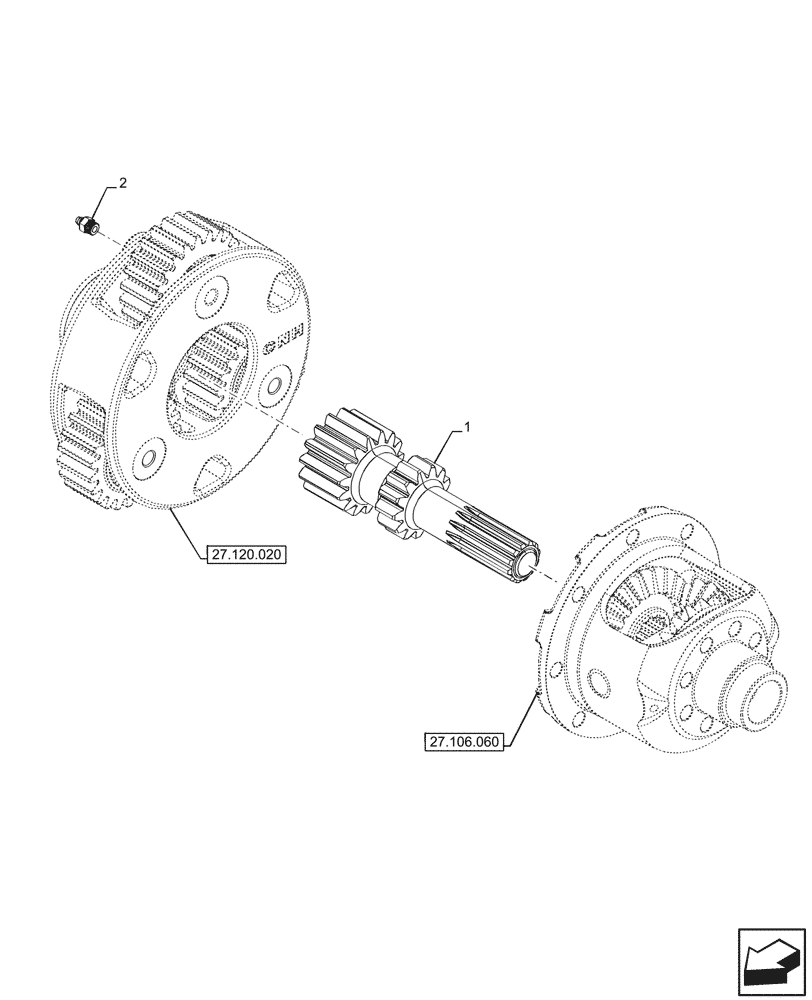

Схема запчастей Case IH FARMALL 100CL - (27.120.080) - VAR - 759008 - REAR AXLE, SHAFT (27) - REAR AXLE SYSTEM
27.120.020
2
1
27.106.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87543134

HALF SHAFT,20/29mm ID x 212.5mm L, 13/21T

RH

1шт.

1

87543135

HALF SHAFT,19/29mm ID x 244.5mm L, 13/21T

LH

1шт.

2

13407211

LUBE NIPPLE,M10 x 1

1шт.
