Запчасти Case IH FARMALL 100CL (21.104.070) - VAR - 743524, 759011 - TRANSMISSION OIL, MECHANICAL, TRANSMISSION (21) - TRANSMISSION

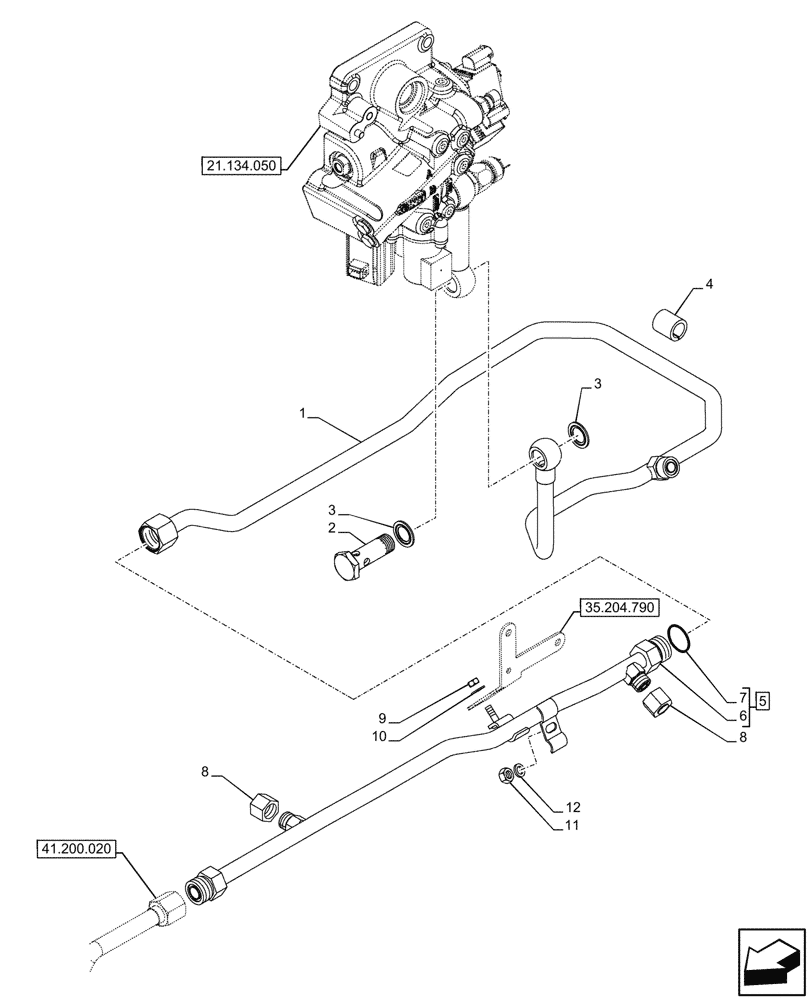

Схема запчастей Case IH FARMALL 100CL - (21.104.070) - VAR - 743524, 759011 - TRANSMISSION OIL, MECHANICAL, TRANSMISSION (21) - TRANSMISSION
21.134.050
7
12
11
2
6
5
8
4
9
3
3
8
10
1
41.200.020
35.204.790

Артикул

Название

Примечание

Количество

1

47997538

PIPE

Rear, from Central Pipe to Transmission control Valve

1шт.

2

5173680

BANJO BOLT,Pipe, M18 x 1.5 x 56mm

1шт.

3

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

3шт.

4

47389651

SPACER,16mm ID x 23mm OD x 25mm L

1шт.

5

48084338

ASSY, Central, from front Pipe Filter to Transmission control Valve, Incl 6, 7

PIPE

1шт.

6

NSS

NOT SOLD SEPARAT

Pipe, Incl in 5

1шт.

7

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

8

9625546

CAP,11/16" - 16 ORFS

2шт.

9

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

10

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

11

84268307

NUT,M6 x 0.75, 8 ZND

1шт.

12

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

1шт.

Выбрано товаров: 12
