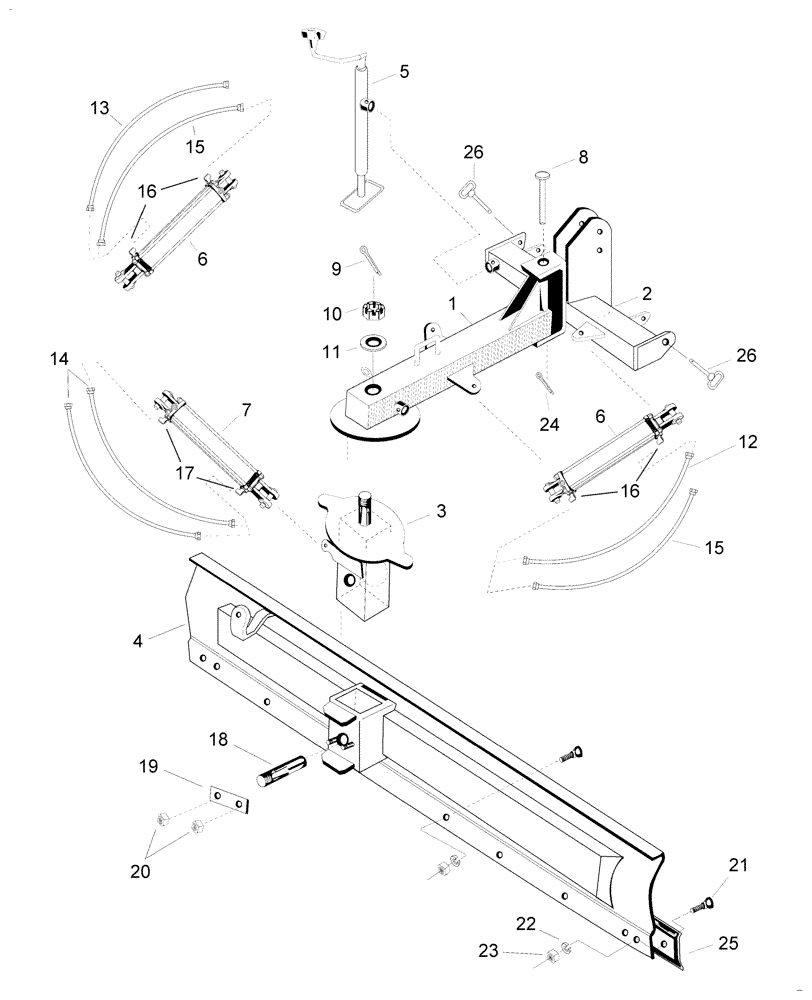

Запчасти Case IH WORK EZ 96SI (004) - HEAVY DUTY PLUS 3 WAY INDUSTRIAL REAR BLADE - MAIN ASSEMBLY

1

MAG115D4020

FRAME

Main

1шт.

2

MAG115D4021

SWIVEL HITCH HEAD TR

1шт.

3

MAG115D4015

PIVOT

Turn Table

1шт.

4

MAG115D4008

MOLDBOARD

WORK EZ 96SI

1шт.

4

MAG115D4009

MOLDBOARD

WORK EZ 108SI

1шт.

5

MAG457D1604

JACK

Tube Mount

1шт.

6

MAG263D2588

HYDRAULIC CYLINDER

Industrial Blade Swing

2шт.

6a

MAG263D46906

SEAL KIT

Kit, Seal, Industrial Blade Swing Cylinder

2шт.

Not Illustrated

1шт.

7

MAG263D2088

HYDRAULIC CYLINDER

Industrial Blade Tilt

1шт.

7a

MAG263D46906

SEAL KIT

Kit, Seal, Industrial Blade Tilt Cylinder

1шт.

Not Illustrated

1шт.

8

MAG105D3120

PIN

Main Frame

1шт.

9

PL

PROCURE LOCALLY

Cotter Pin, 1/4"x5"

2шт.

10

MAG900D8883

NUT

3"

1шт.

11

MAG900D8674

WASHER

Flat, 3"

1шт.

12

MAG415D0043

HYDRAULIC HOSE

90"

1шт.

13

MAG415D0036

HYDRAULIC HOSE

120"

1шт.

14

MAG415D0140

HYDRAULIC HOSE

140"

2шт.

15

MAG415D0045

HYDRAULIC HOSE

110"

2шт.

16

MAG800D0203

FITTING

90°

4шт.

17

MAG50D172

FITTING

Swivel Adaptor

2шт.

18

MAG105D3101

PIN

1шт.

19

MAG200D7451

RETAINER

Pin

1шт.

20

MAG412D0060

LOCK NUT

3/4"

2шт.

21

MAG412D4699

PLOW BOLT

5/8"x1-3/4" GR5

10шт.

22

PL

PROCURE LOCALLY

Lock Washer 5/8"

10шт.

23

PL

PROCURE LOCALLY

Nut, 5/8"

10шт.

24

PL

PROCURE LOCALLY

Cotter Pin, 1/4"x2-1/2"

1шт.

25

MAG416D8456

CUTTING EDGE

WORK EZ 96SI

1шт.

25

MAG900D691741

CUTTING EDGE

WORK EZ 108SI

1шт.

25

MAG900D691743

CUTTING EDGE

WORK EZ 120SI

1шт.

26

MAG155D2008

HITCH PIN

2шт.
