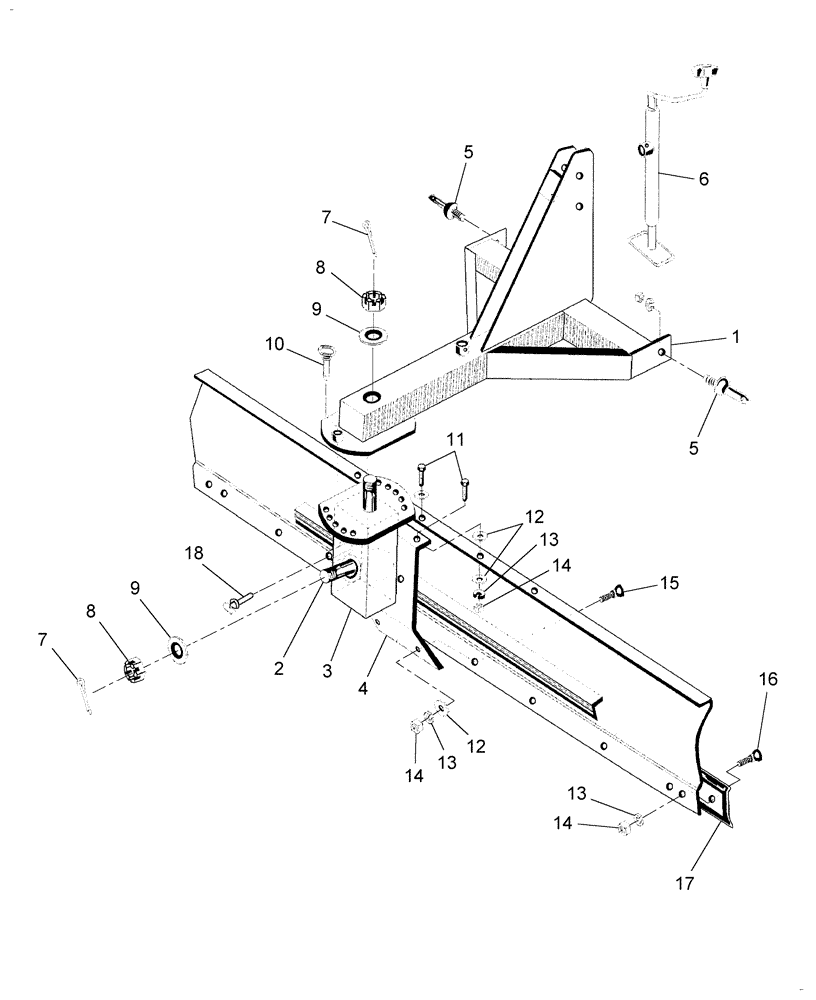

Запчасти Case IH WORK EZ 96SH (003) - HEAVY DUTY 2 WAY REAR BLADE - MAIN ASSEMBLY

1

MAG115D060343

FRAME

Main

1шт.

2

MAG115D063037

MOLDBOARD

7', WORK EZ 84SH

1шт.

2

MAG115D063038

MOLDBOARD

8', WORK EZ 96SH

1шт.

3

MAG115D063063

BOX

1шт.

4

MAG105D3034

PIVOT PLATE

Box

1шт.

5

MAG412D7770

PIN

Lift

2шт.

6

MAG457D1604

JACK

Tube Mount

1шт.

7

PL

PROCURE LOCALLY

Cotter Pin, 1/4"x5"

2шт.

8

MAG900D8884

SLOTTED NUT

1шт.

9

MAG900D8673

SPECIAL WASHER

1шт.

10

MAG151D1215

PIN

Index

1шт.

11

PL

PROCURE LOCALLY

Bolt, 5/8"x2-1/2" GR5

2шт.

12

PL

PROCURE LOCALLY

Flat Washer, 5/8"

4шт.

13

PL

PROCURE LOCALLY

Lock Washer, 5/8", WORK EZ 84SH

12шт.

13

PL

PROCURE LOCALLY

Lock Washer, 5/8" WORK EZ 96SH

14шт.

14

PL

PROCURE LOCALLY

Nut, 5/8", WORK EZ 84SH

12шт.

14

PL

PROCURE LOCALLY

Nut, 5/8", WORK EZ 96SH

14шт.

15

MAG412D2755

PLOW BOLT

5/8"x2-1/2"

2шт.

16

MAG412D4699

PLOW BOLT

5/8"x1-3/4", WORK EZ 84SH

8шт.

16

MAG412D4699

PLOW BOLT

5/8"x1-3/4", WORK EZ 96SH

10шт.

17

MAG416D3906

CUTTING EDGE

WORK EZ 84SH

1шт.

17

MAG416D8456

CUTTING EDGE

WORK EZ 96SH

1шт.

18

MAG151D12300

PIN

Index

1шт.
