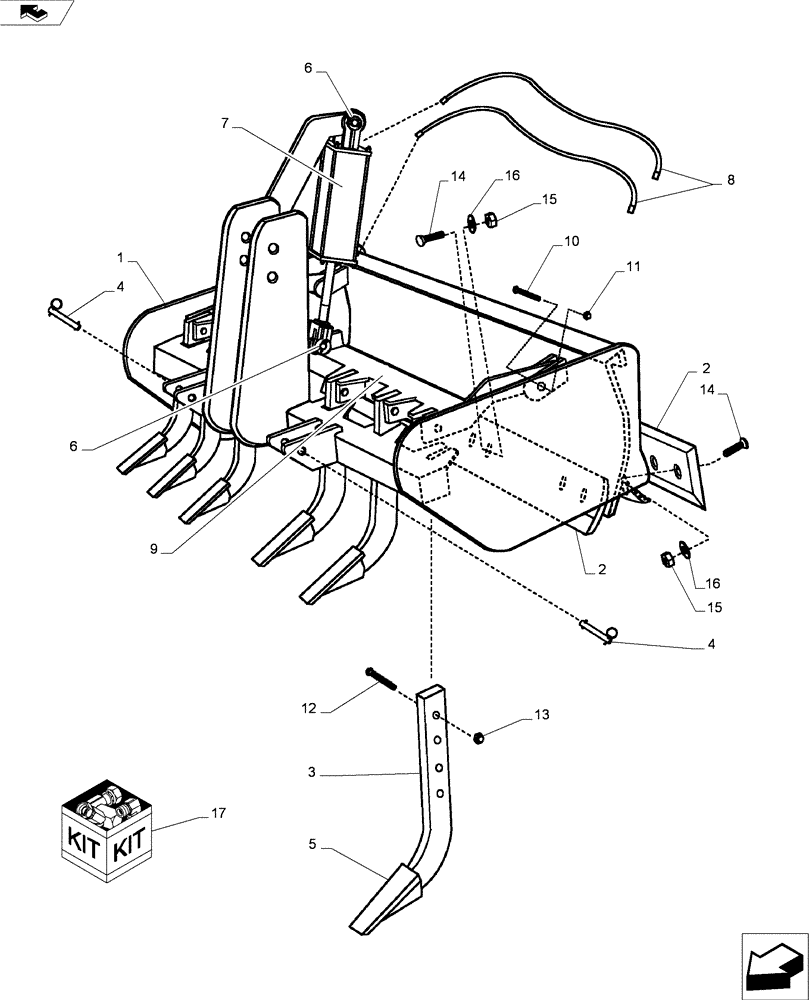

Запчасти Case IH WORK EZ 84BHM (006) - HYDRAULIC MEDIUM DUTY BOX BLADE 6 & 7 - 72BHM/84BHM

1

MAG102D8560

FRAME

6', WORK EZ 72BHM

1шт.

1

MAG102D6174

FRAME

7', WORK EZ 84BHM

1шт.

2

MAG416D8430

CUTTING EDGE

6', WORK EZ 72BHM

1шт.

2

MAG416D3906

CUTTING EDGE

7, WORK EZ 84BHM

1шт.

3

MAG402D8287H

POINT RIPPER SHANK

Scarifier Shank W/Point

6шт.

4

MAG412D6389

PIN

W/Bridge Pin

2шт.

5

MAG402D8495

POINT

Replaceable

6шт.

6

MAG261D700

PIN

Cylinder W/Clip

2шт.

7

MAG263D2088

HYDRAULIC CYLINDER

1шт.

8

MAG415D0036

HYDRAULIC HOSE

120"

2шт.

9

NSS

NOT SOLD SEPARAT

6' Welded Lift Arm, WORK EZ 72BHM

1шт.

9

NSS

NOT SOLD SEPARAT

7' Welded Lift Arm, WORK EZ 84BHM

1шт.

10

PL

PROCURE LOCALLY

Bolt, .5" x 2" HH NC

2шт.

412-2803

1шт.

11

MAG412D3243

LOCK NUT

.5" NC Nylock

2шт.

12

MAG412D1501

BOLT

5/8" HH GR5

6шт.

13

MAG412D5284

LOCK NUT

5/8"

6шт.

14

MAG412D4699

PLOW BOLT

5/8" x 1-3/4"

16шт.

15

MAG412D0059

NUT

5/8"

16шт.

16

MAG412D0073

LOCK WASHER

5/8"

16шт.

17

MAG263D46900

SEAL KIT

KIT, SEAL Hyd Cylinder

1шт.
