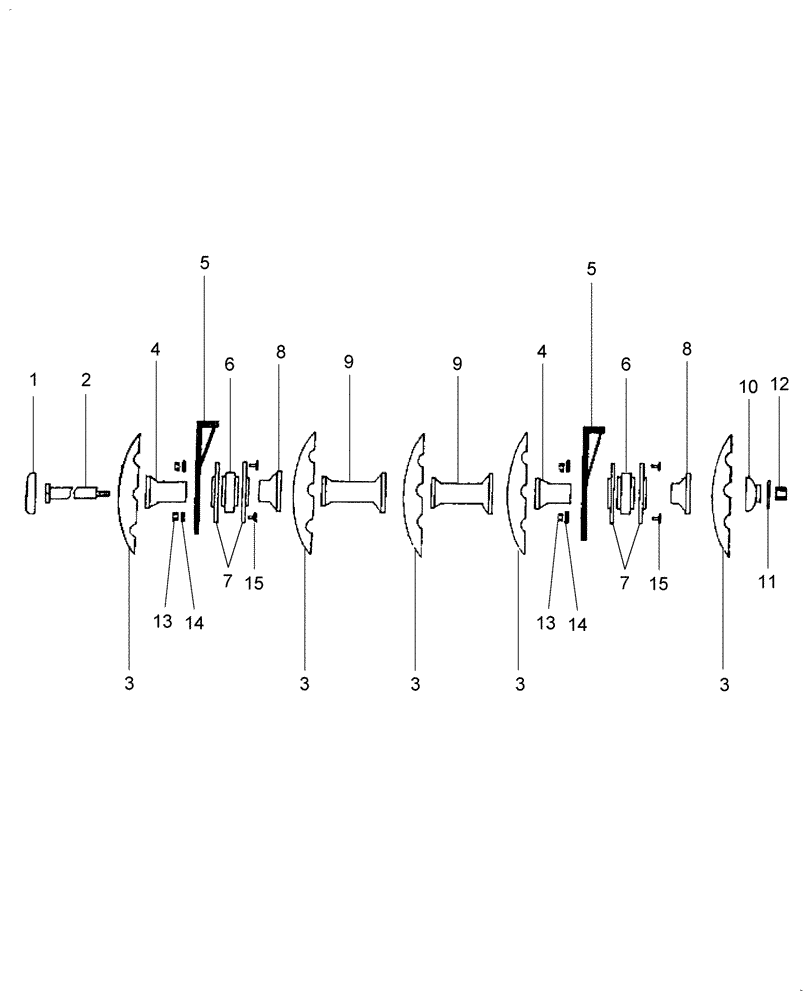

Запчасти Case IH WORK EZ 78DC (003) - 5 BLADE GANG-SEALED BEARING (75) - SOIL PREPARATION

1

MAG411D6948

SPECIAL WASHER

1шт.

2

MAG411D8001

ROD

Gang Rod, 34"

1шт.

3

MAG411D7988

KNIFE BLADE

16" Cut Out

5шт.

3

MAG411D5921

KNIFE BLADE

18" Cut Out

5шт.

4

MAG411D7364

SPACER

2шт.

5

MAG411D48811

BRACKET

Gang Hanger

2шт.

6

MAG411D8404

BEARING ASSY

Sealed

2шт.

7

MAG411D4673

FLANGE

4шт.

8

MAG411D7156

SPACER

Spacer Spool #1

2шт.

9

MAG411D7578

SPACER

Spacer Spool

2шт.

10

MAG412D7780

End Washer

1шт.

11

MAG412D8196

END PLATE

Lock Plate

1шт.

12

MAG412D0068

LOCK NUT

1шт.

13

MAG412D0058

NUT

Hex, 1/2"

8шт.

14

MAG412D0072

LOCK WASHER

1/2"

8шт.

15

PL

PROCURE LOCALLY

1/2"x1-1/2"

8шт.
