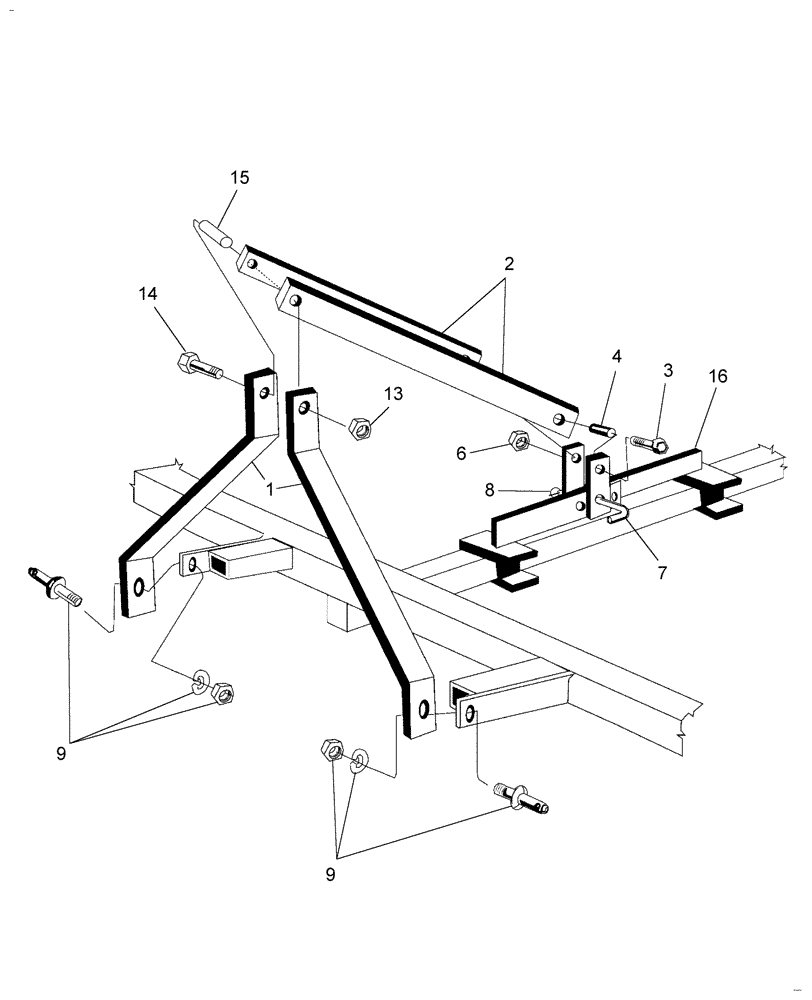

Запчасти Case IH WORK EZ 78DC (001) - STANDARD DISC A-FRAME (75) - SOIL PREPARATION

1

MAG100D200

DRAWBAR FRAME

78" Strut Riser

2шт.

2

MAG100D201

DRAWBAR FRAME

78" Strut Brace

2шт.

3

PL

PROCURE LOCALLY

Bolt, 1/2"x3-1/2"

1шт.

4

MAG111D90221

GUIDE BUSHING

1шт.

6

PL

PROCURE LOCALLY

Hex Nut, 1/2"

1шт.

7

MAG111D90191

PIN

Side Retainer

1шт.

8

MAG412D5115

PIN

Retainer

1шт.

9

MAG412D7770

PIN

Lift

2шт.

13

PL

PROCURE LOCALLY

Lock Nut, 1/2"

3шт.

14

PL

PROCURE LOCALLY

Bolt, 1/2"x4" GR5

1шт.

15

MAG412D54041

SPACER

Top Link

2шт.

16

MAG111D90001

BRACKET

Side Adjustment

2шт.
