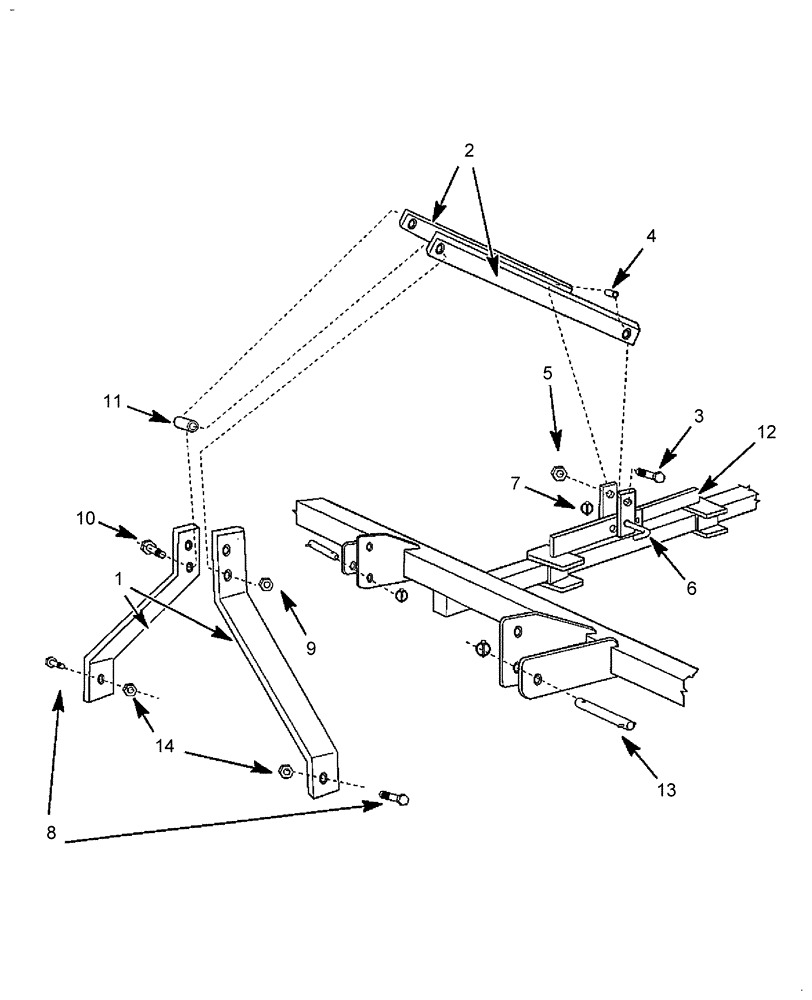

Запчасти Case IH WORK EZ 78DC (001[01]) - STANDARD DISC A-FRAME - ON & ASN YAWBD1875 (75) - SOIL PREPARATION

1

MAG100D200QH

DRAWBAR FRAME

78" Strut Riser

2шт.

2

MAG100D201

DRAWBAR FRAME

78" Strut Brace

2шт.

3

PL

PROCURE LOCALLY

Bolt, 1/2"x3-1/2"

1шт.

4

MAG111D90221

GUIDE BUSHING

1шт.

5

PL

PROCURE LOCALLY

1/2" Hex Nut

1шт.

6

MAG111D90191

PIN

Side Retainer

1шт.

7

MAG412D5115

PIN

Retainer

1шт.

8

PL

PROCURE LOCALLY

3/4" x 2" Bolt

2шт.

9

PL

PROCURE LOCALLY

Lock Nut, 1/2"

3шт.

10

PL

PROCURE LOCALLY

Bolt, 1/2"x4" GR5

1шт.

11

MAG412D54041

SPACER

Top Link

2шт.

12

MAG111D90001

BRACKET

Side Adjustment

2шт.

13

MAG412D6359

Cat 1 Pull Pin

2шт.

14

PL

PROCURE LOCALLY

Nylock Nut 3/4

2шт.
