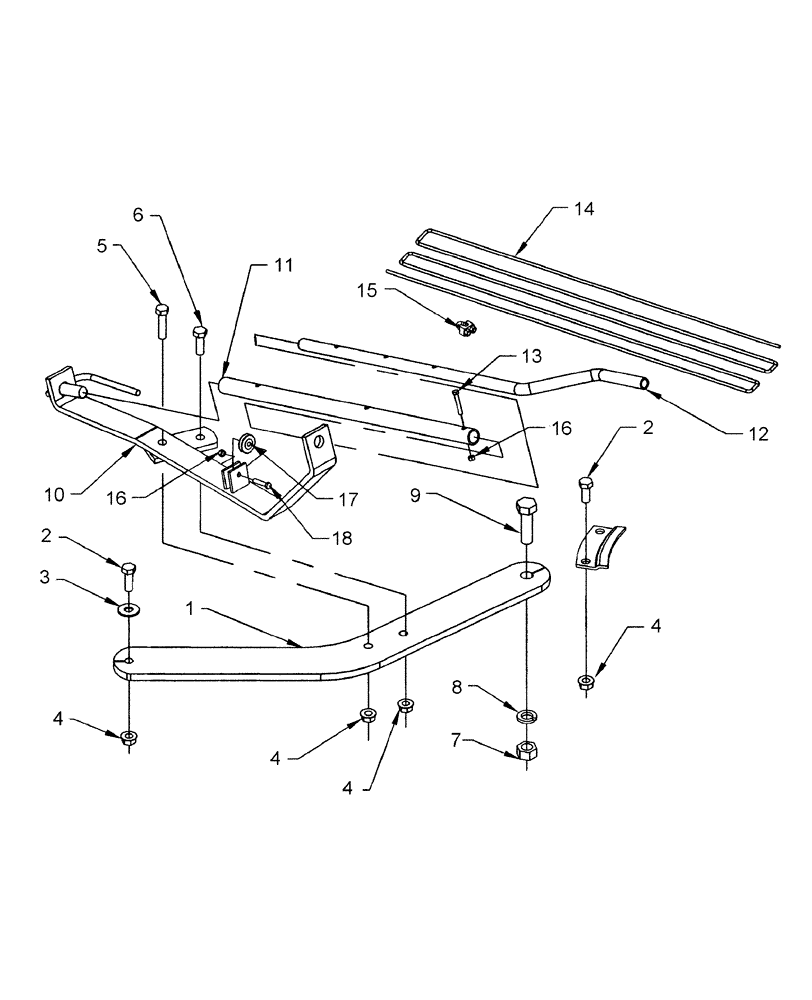

Запчасти Case IH BSX184R (114) - MANUAL CHUTE ROTATION - 715343026

1

BER666847

BAR

BAR, w/ attaching plate

1шт.

2

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1 -1/4" GR5

3шт.

3

PL

PROCURE LOCALLY

Washer, Flat, 9/16"

1шт.

4

PL

PROCURE LOCALLY

Nut, Serrated Flange, 1/2"

3шт.

0900046

1шт.

5

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 2" GR5

1шт.

6

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1 -1/2" GR5

1шт.

7

PL

PROCURE LOCALLY

Nut, Hex, 3/4"

1шт.

8

PL

PROCURE LOCALLY

Washer, Loc,k 3/4"

1шт.

9

PL

PROCURE LOCALLY

Bolt, Hex, 3/4" x 2 -1/2" GR5

1шт.

10

BER666861

PLATE

SUPPORT

1шт.

11

BER654187

TUBE

1шт.

12

BER654185

HANDLE

1шт.

13

PL

PROCURE LOCALLY

Bolt, Hex, 1/4" x 1 -1/2" GR5

1шт.

14

BER656381

CABLE

CABLE, 3/16" x 160" lg

1шт.

15

BER654202

CLAMP

Cable

1шт.

16

PL

PROCURE LOCALLY

Locknut, Nylon Insert, 1/4"

2шт.

17

BER654189

PULLEY

1шт.

18

PL

PROCURE LOCALLY

Bolt, Hex, 1/4" x 1 -1/4" GR5

1шт.
