(110) - HYDRAULIC CHUTE ROTATION - 715342026

Запчасти Case IH BSX184R (110) - HYDRAULIC CHUTE ROTATION - 715342026

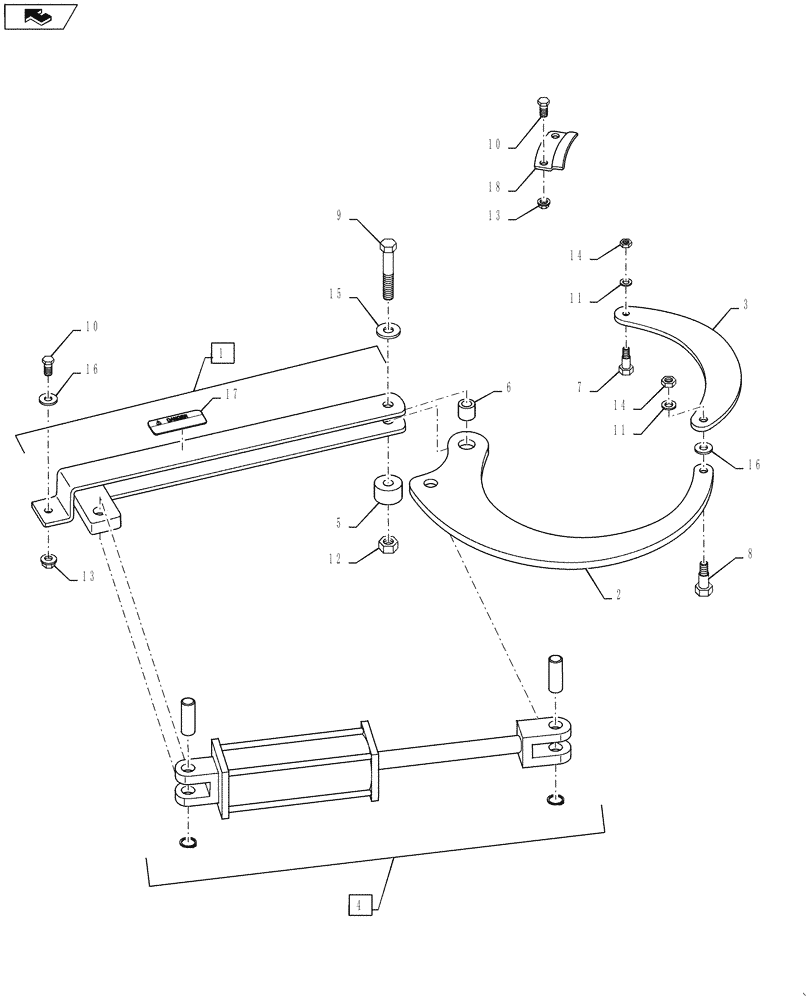

Схема запчастей Case IH BSX184R - (110) - HYDRAULIC CHUTE ROTATION - 715342026
7
3
8
14
16
2
18
13
11
4
16
10
11
14
home
5
15
13
17
1
12
6
9
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BER664475

BRACKET

Includes: Ref. 17

1шт.

2

BER664473

CRANK

Bell

1шт.

3

BER664474

ARM

Push

1шт.

4

BER654129

CYLINDER,Double Acting, 203.2mm Stroke

CYLINDER, 3 x 8, Includes: pins

1шт.

5

BER664477

SPACER

1шт.

6

BER664476

BUSHING

1шт.

7

BER664578

SCREW

Shoulder, 1/2" x 1" x 3/8"

1шт.

8

BER664577

SCREW

Shoulder, 1/2" x 3/4" x 3/8"

1шт.

9

PL

PROCURE LOCALLY

Bolt, Hex, 3/4" x 5"

1шт.

10

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1 -1/4"

3шт.

11

PL

PROCURE LOCALLY

Washer, Flat, 7/16"

2шт.

12

PL

PROCURE LOCALLY

Nut, Hex, 3/4"

1шт.

13

PL

PROCURE LOCALLY

Nut, Serrated Flange, 1/2"

3шт.

0900046

1шт.

14

BER1100003

NUT

Stover, 3/8"

2шт.

15

PL

PROCURE LOCALLY

Washer, Lock, 3/4"

1шт.

16

PL

PROCURE LOCALLY

Washer, Flat, 9/16"

3шт.

17

BER664548

DECAL

DANGER (Hydraulic Chute Rotation)

1шт.

18

BER654197

PLATE

4шт.
