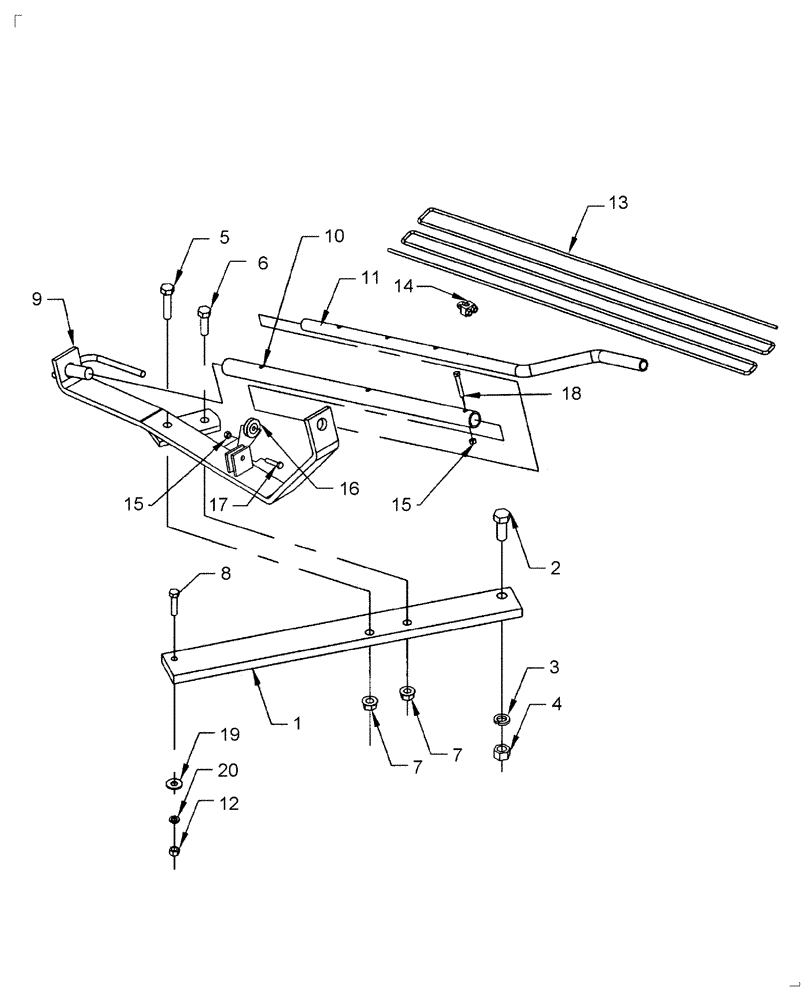

Запчасти Case IH BSX174R (113) - MANUAL CHUTE ROTATION - 715343016

1

BER666857

PLATE

1шт.

2

PL

PROCURE LOCALLY

Bolt, Hex, 5/8" x 1 -1/2" GR5

1шт.

3

PL

PROCURE LOCALLY

Washer, Lock, 5/8"

1шт.

4

PL

PROCURE LOCALLY

Nut, Hex, 5/8"

1шт.

5

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 2" GR5

1шт.

6

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1 -1/2" GR5

1шт.

7

PL

PROCURE LOCALLY

Nut, Flange, 1/2"

2шт.

0900046

1шт.

8

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 1 -1/2" GR5

1шт.

9

BER666861

PLATE

Support

1шт.

10

BER654187

TUBE

1шт.

11

BER654185

HANDLE

1шт.

12

PL

PROCURE LOCALLY

Nut, Hex, 3/8"

1шт.

13

BER654201

CABLE

3/16" x 152" lg

1шт.

14

BER654202

CLAMP

Cable

1шт.

15

PL

PROCURE LOCALLY

Locknut, Nylon Insert, 1/4"

2шт.

16

BER654189

PULLEY

1шт.

17

PL

PROCURE LOCALLY

Bolt, Hex, 1/4" x 1 -1/4" GR5

1шт.

18

PL

PROCURE LOCALLY

Bolt, Hex, 1/4" x 1 -1/2" GR5

1шт.

19

PL

PROCURE LOCALLY

Washer, Flat, 7/16"

1шт.

20

PL

PROCURE LOCALLY

Washer, Lock, 3/8"

1шт.
