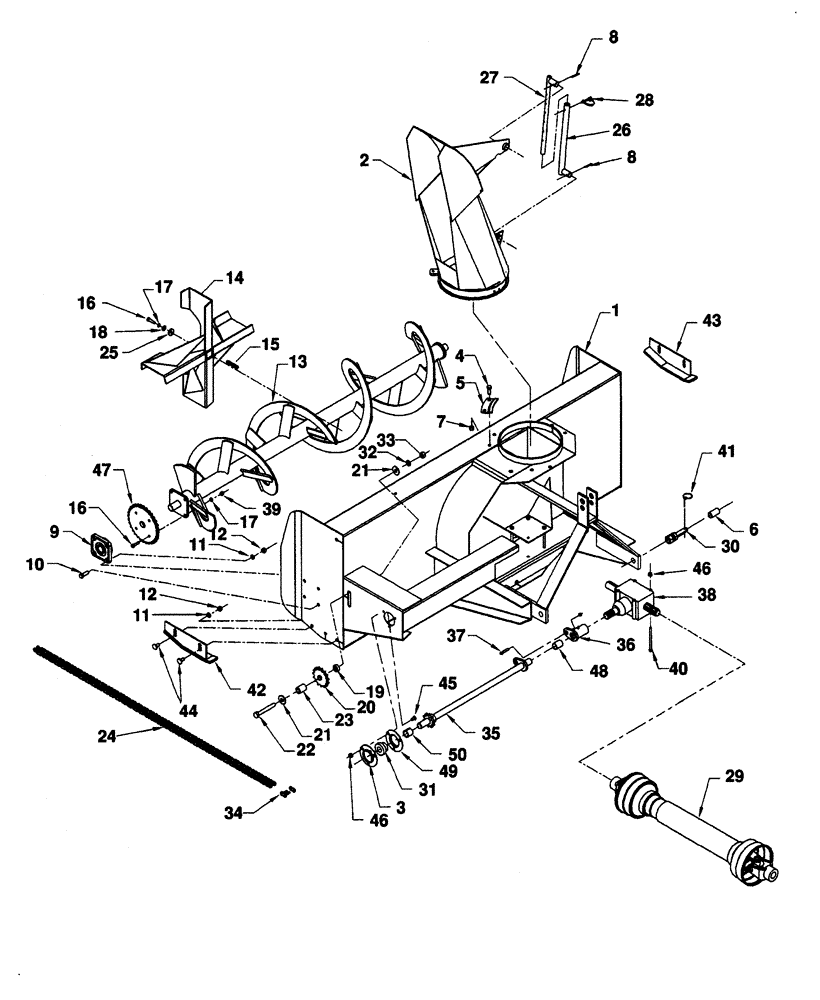

Запчасти Case IH BSX174R (101) - 74" SNOWBLOWER

1

NSS

NOT SOLD SEPARAT

Housing, 74"

1шт.

2

BER666849

CHUTE ASSY.

1шт.

3

BER4300015

FLANGE

Includes: Grease fitting

1шт.

4

PL

PROCURE LOCALLY

Bolt, Hex, 1/2" x 1 -1/4" GR5

6шт.

5

BER654197

PLATE

Retaining

3шт.

6

BER666843

BUSHING

Bushing 1-11/16" Long

2шт.

6

BER4600045

BUSHING

Bushing 1-3/4" Long

2шт.

7

PL

PROCURE LOCALLY

Nut, 1/2"

6шт.

8

PL

PROCURE LOCALLY

Cotter Pin, 1/4"x2"

2шт.

9

BER4300001

BEARING

1 -1/4" dia. hole

2шт.

10

PL

PROCURE LOCALLY

Bolt, Hex 1/2" x 1 -1/2", GR5

8шт.

11

PL

PROCURE LOCALLY

Washer, Lock, 1/2"

12шт.

12

PL

PROCURE LOCALLY

Nut, Hex, 1/2"

12шт.

13

CSE666271

AUGER

74"

1шт.

14

CSE664500

FAN

1шт.

14

CSE668966

FAN

Red

1шт.

English

1шт.

715347016, ASN RAD009536

1шт.

15

BER654174

KEY

3/8" x 3/8" x 2 3/4"

1шт.

16

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 1 -1/2" GR5

5шт.

17

PL

PROCURE LOCALLY

Washer, Lock, 3/8"

5шт.

18

PL

PROCURE LOCALLY

Washer, Flat, 7/16"

1шт.

19

BER666264

IDLER

Bushing, 15/32"

1шт.

19

BER667777

IDLER

Bushing

1шт.

Used On & ASN RAD009536

1шт.

20

BER654010

IDLER

Sprocket

1шт.

20

BER3300022

SPROCKET

Sprocket

1шт.

Used On & ASN RAD009536

1шт.

21

PL

PROCURE LOCALLY

Washer, Flat, 11/16"

2шт.

22

PL

PROCURE LOCALLY

Bolt, Hex, 5/8" x 4 -1/2" GR5

1шт.

23

BER666263

IDLER

Bushing, 1 -19/32"

1шт.

23

BER668093

IDLER

Bushing

1шт.

Used On & ASN RAD009536

1шт.

24

BER654009

CHAIN

#60 x 78 Links , Includes: Ref. 34

1шт.

25

BER661554

WASHER

1шт.

26

BER654076

TUBE

1шт.

27

BER654074

ADJUSTMENT ROD

1шт.

28

BER1800003

PIN

5mm dia. x 100mm

1шт.

29

BER662194

DRIVE

1шт.

30

BER654196

PIN

Hitch, Cat. 1

2шт.

31

BER4300016

BEARING

1 -1/8" dia. w/ collar

1шт.

32

PL

PROCURE LOCALLY

Washer, Lock, 5/8"

1шт.

33

PL

PROCURE LOCALLY

Nut, Hex, 5/8"

1шт.

34

BER654839

LINK CHAIN

#60

1шт.

35

BER666272

DRIVE SHAFT

1шт.

36

BER666257

PLATE

Shear

1шт.

37

BER665547

BOLT

Shear, Hex, 5/16" x 1 -3/4" GR5, Includes: Nut

1шт.

38

BER663485

GEARBOX

1шт.

39

PL

PROCURE LOCALLY

Nut, Hex, 3/8"

4шт.

40

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 5" GR5

4шт.

41

BER1900003

PIN

Linch, 7/16"

2шт.

42

BER666254

SKID/SHOE

LH

13шт.

43

BER666255

SKID/SHOE

RH

8шт.

44

PL

PROCURE LOCALLY

Bolt, Carriage, 1/2" x 1", GR5

8шт.

0300022

1шт.

45

BER0300007

BOLT

Carriage, 3/8" x 3/4", GR5

8шт.

46

BER0900035

NUT

Serrated Flange, 3/8"

2шт.

47

BER654167

DRIVING SPROCKET

#60A32

2шт.

48

BER4300056

BUSHING

4шт.

49

BER4300014

FLANGE

1шт.

Used On & ASN RAD009536

1шт.

50

BER667015

SPACER

Spacer Ring 1-3/16" Long

1шт.

Used On & ASN RAD009536

1шт.

51

BER654106

FITTING

Grease

1шт.

Used On & ASN RAD009536

1шт.
