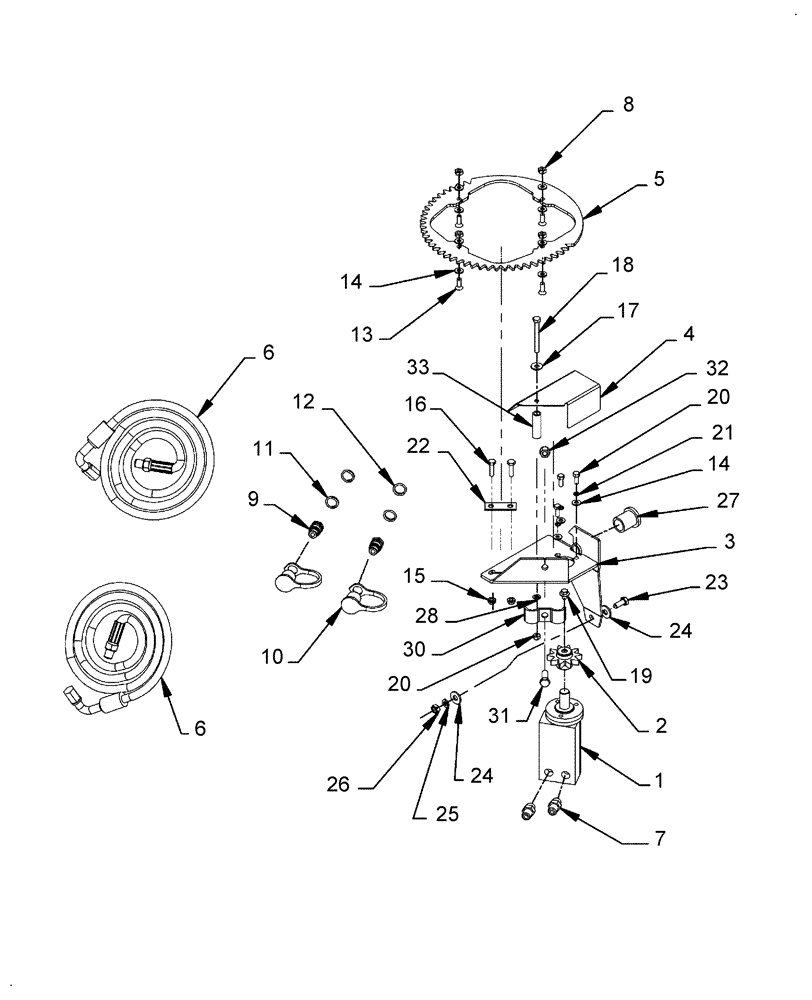

Запчасти Case IH BSX150 (105) - HYDRAULIC CHUTE ROTATION - 717172026

1

BER3910014

HYDRAULIC MOTOR

Eagle

1шт.

1a

BER3910015

SEAL KIT

Eagle

1шт.

2

BER665688

GEAR

Motor

1шт.

3

BER667345

SUPPORT

Motor

1шт.

4

BER667346

SHIELD

Gear

1шт.

5

BER667347

GEAR

Hydraulic Rotation

1шт.

6

BER3700148

HYDRAULIC HOSE

Rubber, 1/4" x 48" Long

2шт.

7

BER665971

RESTRICTOR VALVE

047"

2шт.

8

BER1100001

NUT

Stover

4шт.

9

BER657094

COUPLING

Male 1/4"

2шт.

10

BER658203

DUST CAP

2шт.

11

BER658206

RING

Identification, Yellow

2шт.

12

BER658209

RING

Identification, Green

2шт.

13

PL

PROCURE LOCALLY

Allen Set Screw, 1/4"x3/4" Flat Head

6шт.

14

PL

PROCURE LOCALLY

Flat Washer, 1/4" hole

11шт.

15

BER0900058

NUT

Serrated Flange, 1/4"

2шт.

16

PL

PROCURE LOCALLY

Bolt, Hex 1/4"x1" Long GR5

2шт.

17

PL

PROCURE LOCALLY

Flat Washer, 5/16" Hole

1шт.

18

PL

PROCURE LOCALLY

Bolt, Hex 1/4"x2-1/2" Long GR5

1шт.

19

BER0200103

BOLT

Serrated Flange, M6 x 1 x 10mm GR8

1шт.

20

BER0200096

BOLT

M6x1.0x16mm Long

3шт.

21

BER1200013

WASHER

Lock, 6mm

3шт.

22

BER667348

SPACER

1шт.

23

PL

PROCURE LOCALLY

Bolt, Hex 5/6"x3/4" Long GR5

1шт.

24

PL

PROCURE LOCALLY

Flat Washer, 3/8" Hole

2шт.

25

PL

PROCURE LOCALLY

Lock Washer, 5/16"

1шт.

26

PL

PROCURE LOCALLY

Nut, Hex, 5/16"

1шт.

27

BER657335

DRIVE BUSHING

5/16"

1шт.

28

PL

PROCURE LOCALLY

Washer, Lock, 1/4"

1шт.

29

PL

PROCURE LOCALLY

Nylon Insert Nut 1/4"

1шт.

30

BER666583

HOSE CLAMP

1шт.

31

PL

PROCURE LOCALLY

Bolt, Hex 3/8" NC x 1" GR 5

1шт.

32

PL

PROCURE LOCALLY

Nylon Insert Locknut, 3/8"

1шт.

33

BER668487

TUBE SPACER

1шт.
