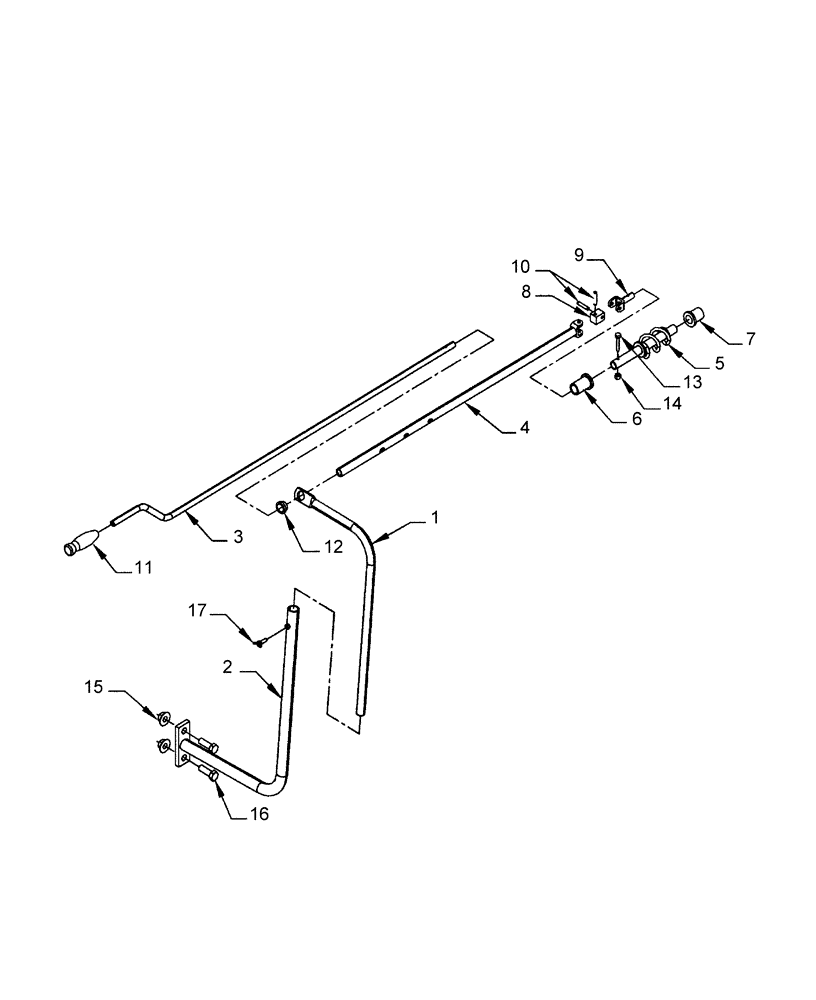

Запчасти Case IH BSX150 (104) - MANUAL CHUTE ROTATION

1

BER667003

SUPPORT

Handle Support

1шт.

2

BER666977

BRACKET

Bracket, Handle Support

1шт.

3

BER666987

HANDLE

Handle

1шт.

4

BER666996

TUBE

Tube, Rotation Includes: Ref. 4A, 8 thru 10

1шт.

4a

BER666995

TUBE

Tube, Rotation

1шт.

5

BER665037

WORM

Rotation

1шт.

6

BER657336

BUSHING

Plastic, 1 11/16"

1шт.

7

BER657335

DRIVE BUSHING

Plastic, 1 5/16"

1шт.

8

BER658193

BLOCK

Block, Universal

2шт.

9

BER659595

YOKE

Rotation

1шт.

10

PL

PROCURE LOCALLY

Pin, Spring 1/4" x 1-1/4"

2шт.

11

BER656797

HANDLE GRIP

1шт.

12

BER657390

GROMMET

1шт.

13

BER0800009

BOLT

10-24 x 1" GR5

1шт.

14

PL

PROCURE LOCALLY

Nylon Insert Locknut Hex 10-24

1шт.

15

BER0900046

NUT

Serrated Flange, 1/2"

2шт.

16

PL

PROCURE LOCALLY

Bolt, Hex 1/2" x 1 1/2"

2шт.

17

PL

PROCURE LOCALLY

Bolt, Wing 1/4" x 3/4"

1шт.

18

BER657329

SUPPORT

Rotation

1шт.
